Figure 2
From: Corticostriatal activity related to performance during continuous de novo motor learning

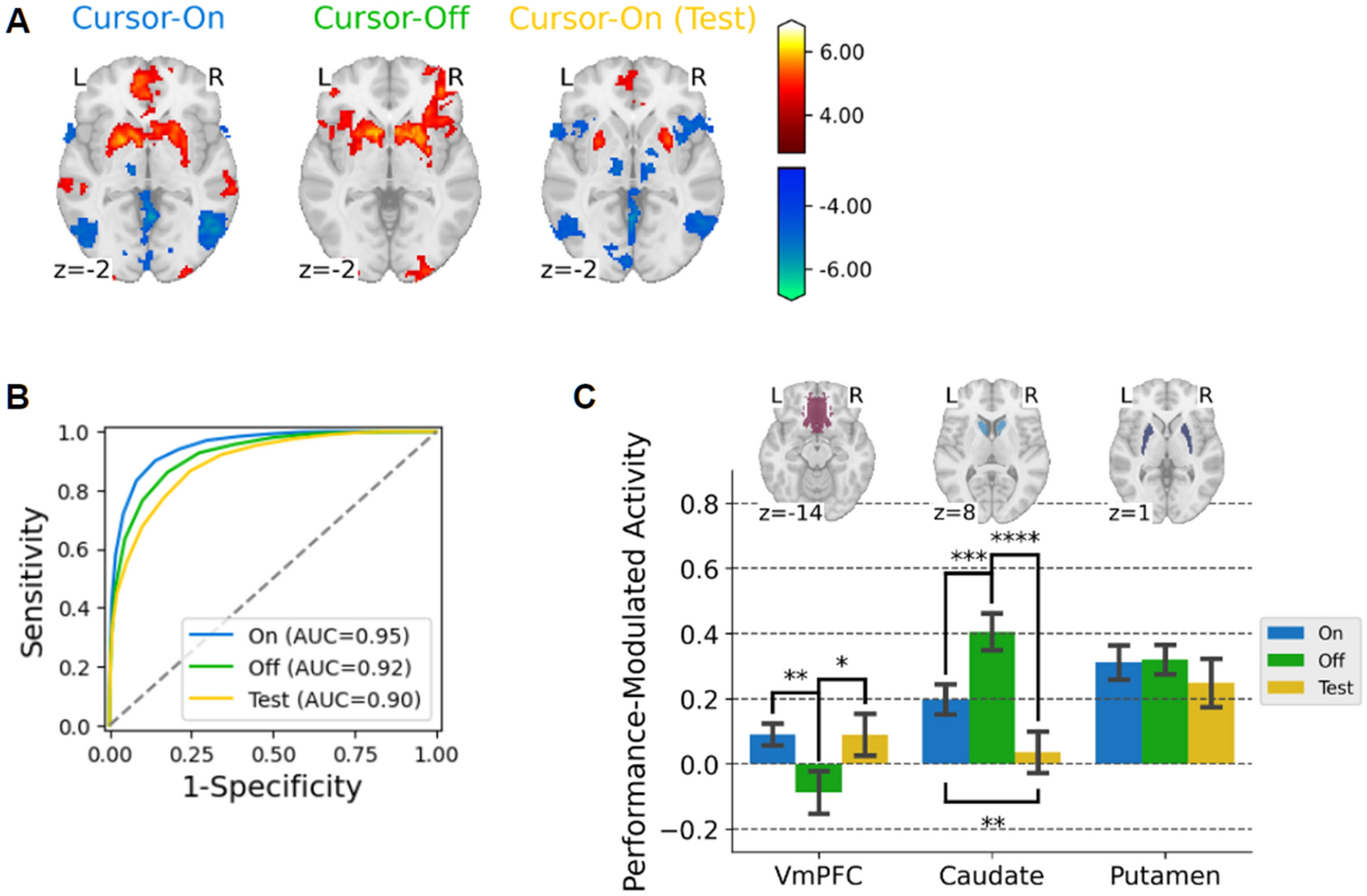

Brain regions where activity is modulated by performance in three learning conditions, "cursor-on" (blue), "cursor-off" (green), and "cursor-on (test)" conditions. (A) The results of whole-brain voxel-wise GLM analysis with parametric modulation were converted to z-scores, and clusters revealed significant positive modulation (voxel-wise p < 0.005 for a visualization purpose). (B) The receiver operating characteristic (ROC) curves for the three conditions show highly selective activity within an anatomically defined striatum compared to the whole brain. (C) Comparison of activity in the corticostriatal ROIs (vmPFC, caudate nucleus, and putamen) among the three conditions.
