Figure 6

From: Revealing the pharmacological effects of Remodelin against osteosarcoma based on network pharmacology, acRIP-seq and experimental validation

Figure 6

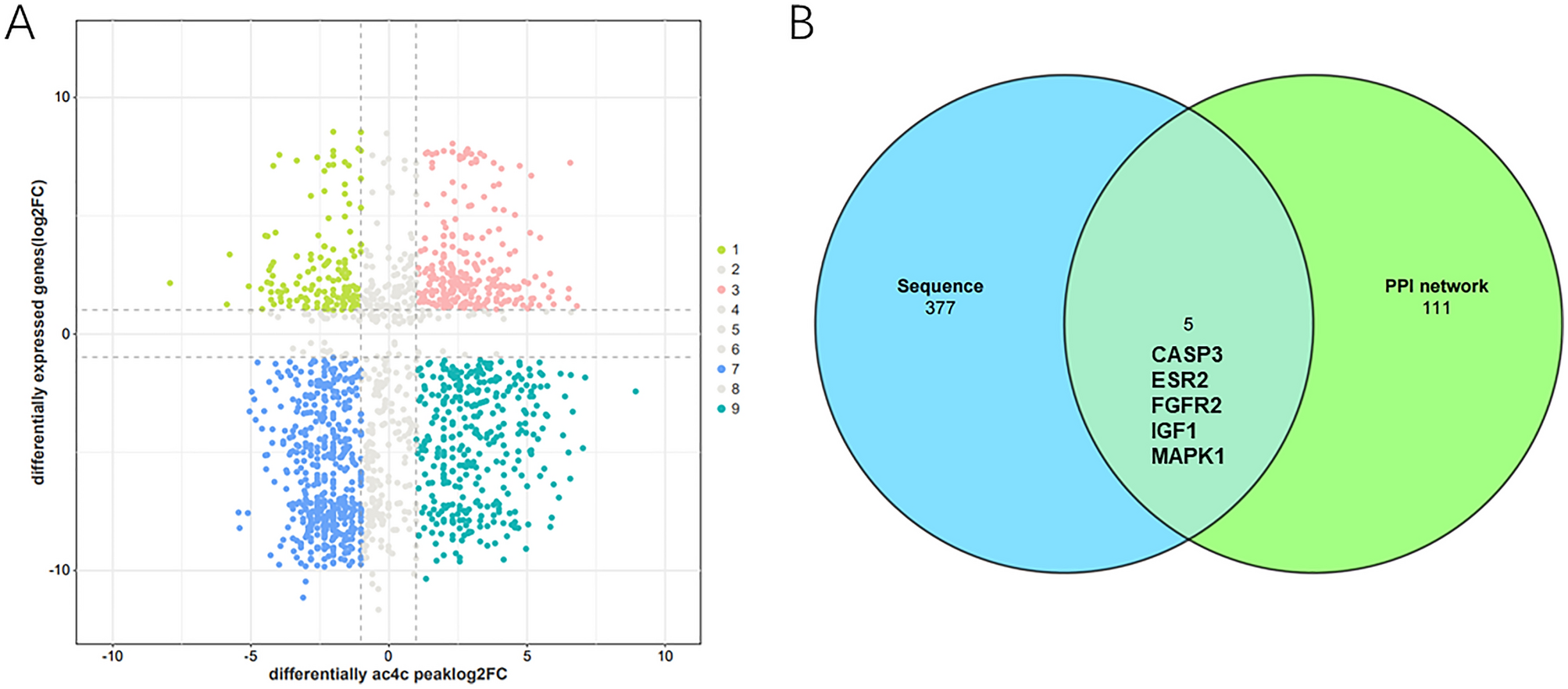

Hypoacetylated-down genes were obtained by Association analysis and Dual-validation. (A) Four-quadrant plot of association analysis of differential mRNA modifications with differential gene expression, with vertical coordinates representing the log2 (fold change) of the differential ac4C modification peak and horizontal coordinates representing the log2 (fold change) of the differentially expressed genes. (B) Venn plot of PPI network target genes versus Hypoacetylated-down genes.
