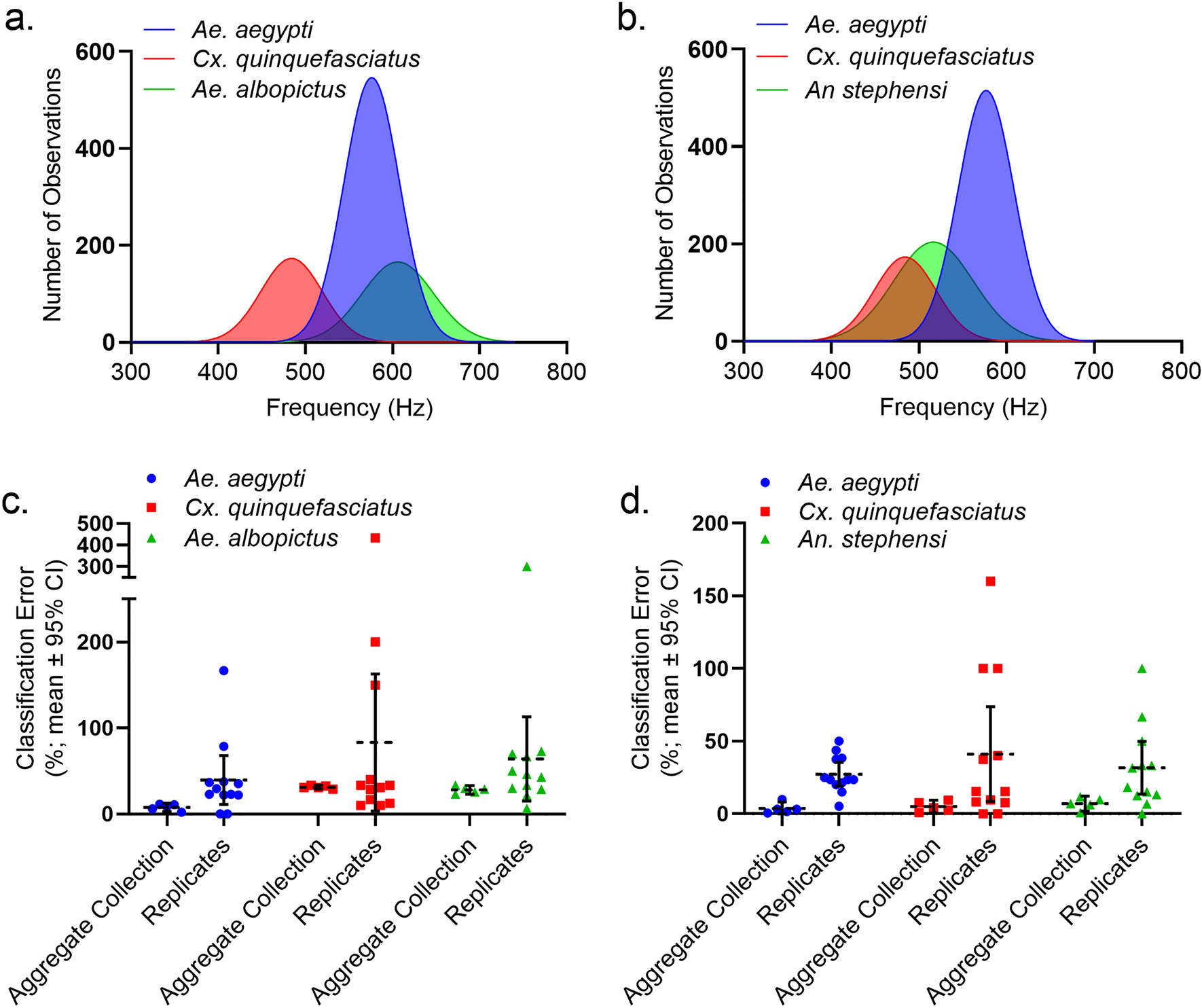

Figure 2
Summary of recorded female wing beat frequency distributions and classification performance of the BG-I trap system for all species released together in each release scenario. (a-b) Wing beat frequency distributions for species released together during release Scenario 1 and Scenario 2, respectively. (c-d) Percent (absolute) error (mean ± 95% CI) of automated (BG-I) species classifications relative to physical trap counts for species released together during release Scenario 1 and Scenario 2, respectively. Percent error observed for each individual replicate is shown as a symbol (n=12).
