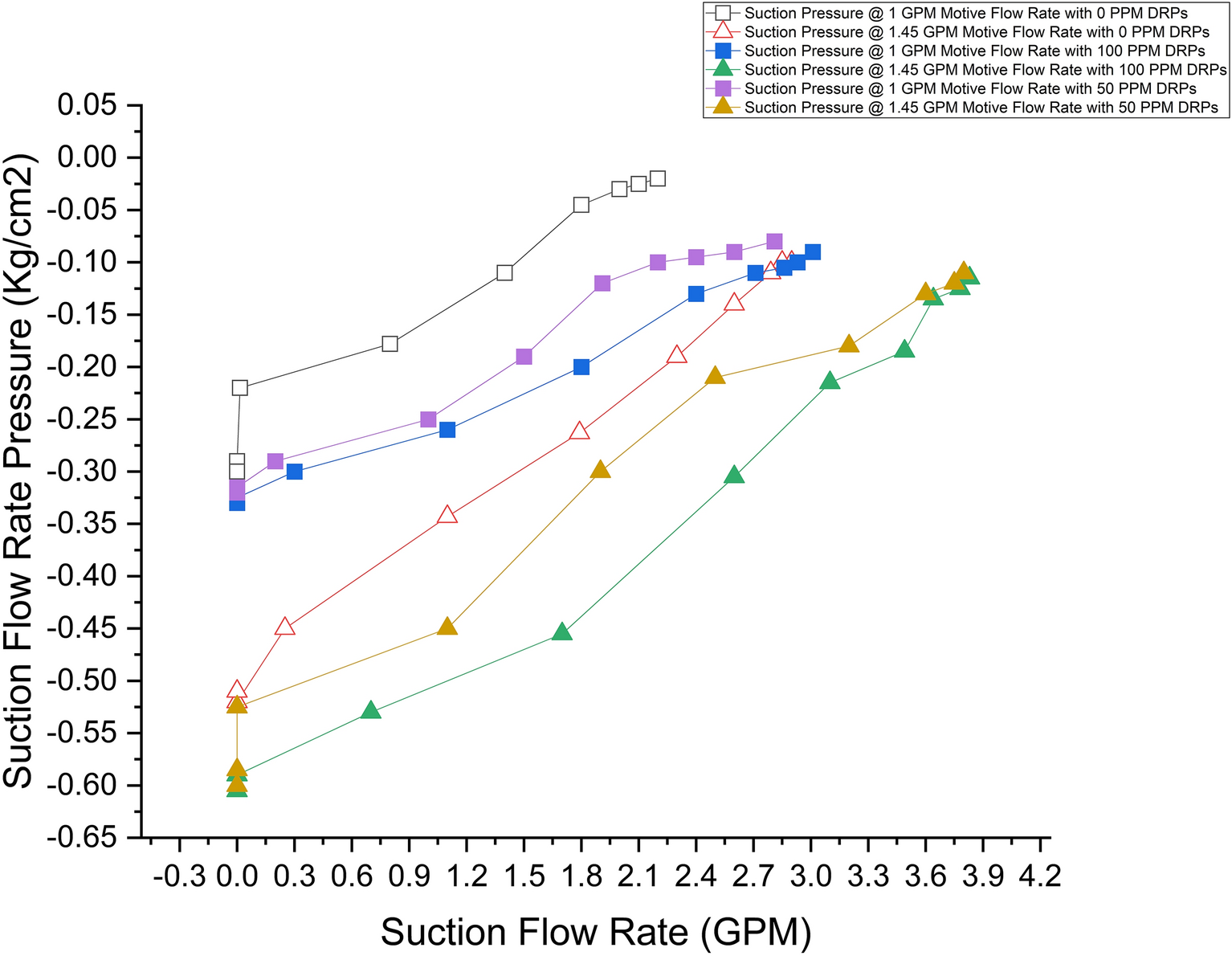

Figure 2
From: Optimizing jet pump efficiency via drag reducing polymers and enhanced efficiency definitions
Variation of the suction flow rate pressure with the suction flow rate capacity at different motive flow rates and DRPs concentrations (100, 50 and 0 PPM).
