Fig.4
From: Optimizing jet pump efficiency via drag reducing polymers and enhanced efficiency definitions

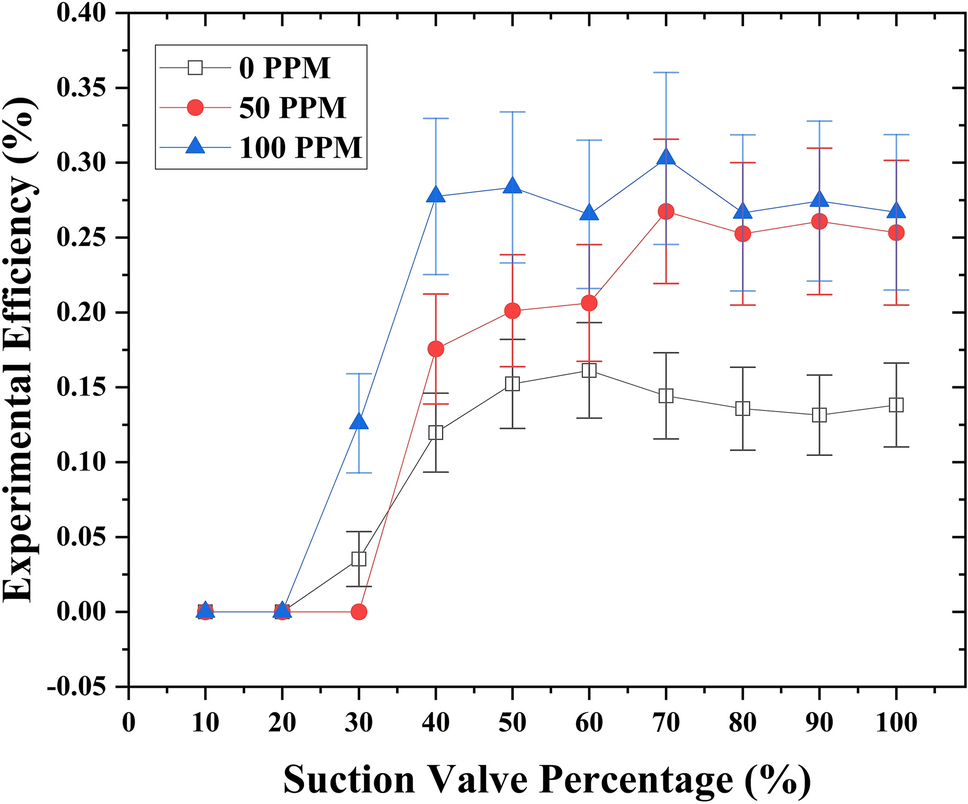

Relationship between the experimental efficiency and the suction flow rate control valve capacity for varying concentrations of drag reducing polymers (DRPs) (0Â ppm, 50Â ppm, and 100Â ppm), at a fixed motive flow rate of 1.45 GPM.
