Figure 8
From: Optimizing jet pump efficiency via drag reducing polymers and enhanced efficiency definitions

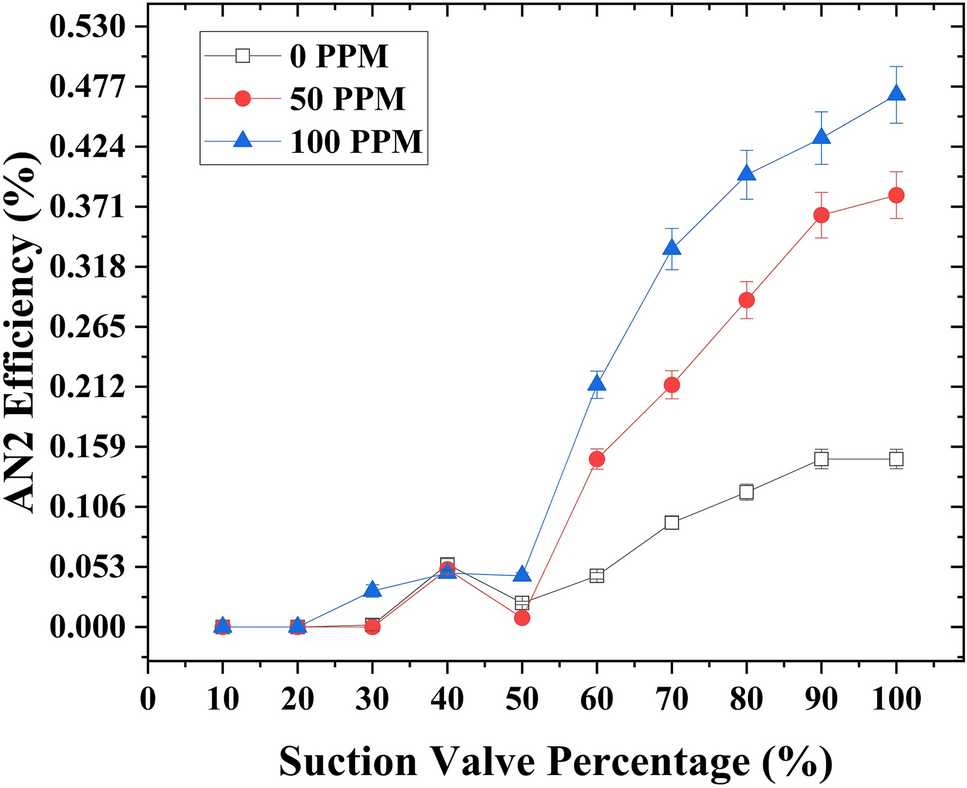

Analytical type 2 efficiency variation as a function of suction flow rate control valve capacity at a motive flow rate of 1 GPM, considering different concentrations of drag reducing polymers (DRPs) (0, 50, and 100Â ppm).
