Figure 3
From: Conflict-free joint decision by lag and zero-lag synchronization in laser network

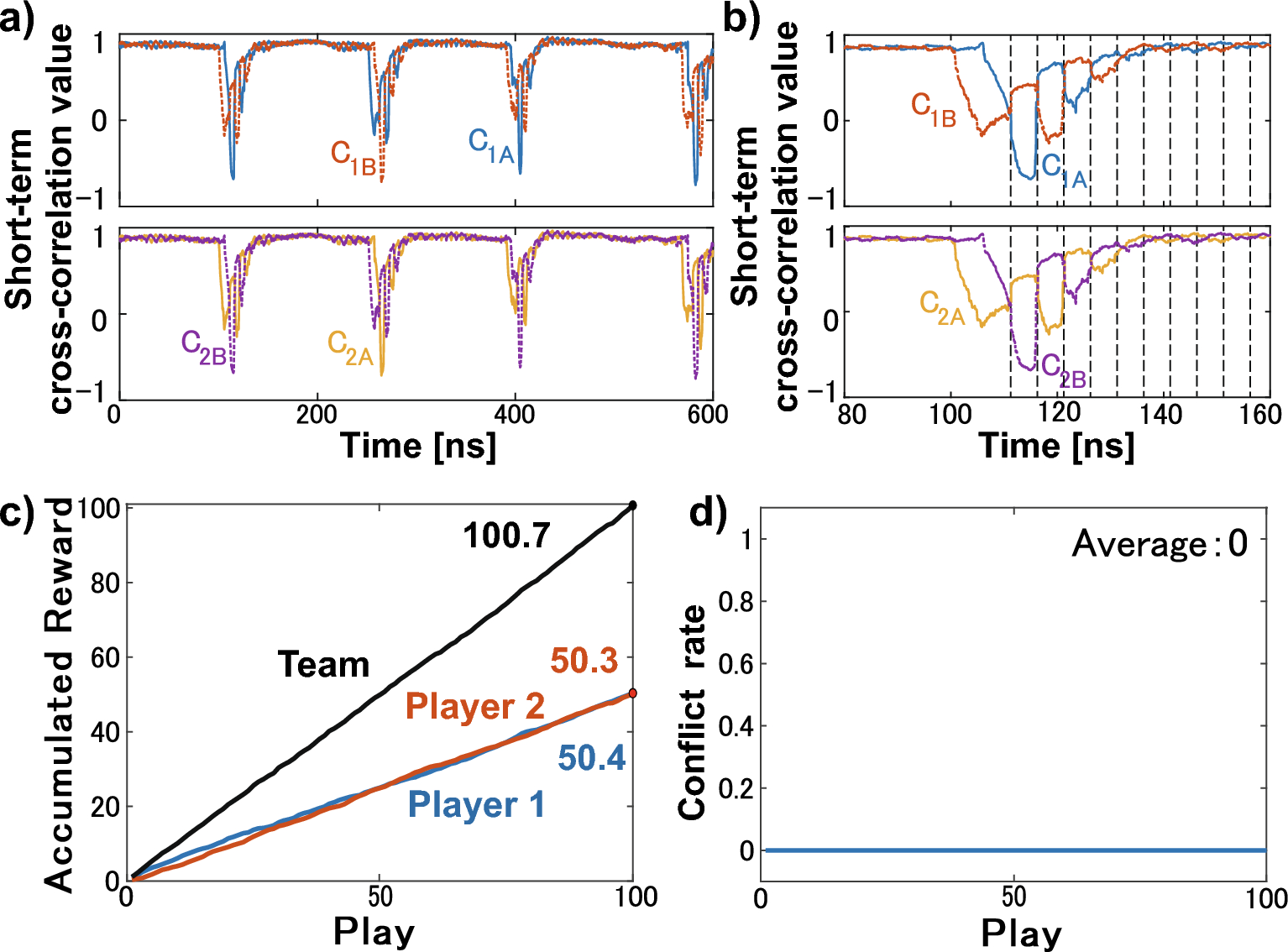

Numerical simulation results: short-term cross-correlation values and decision-making. (a) Short-term cross-correlation values \(C_{1A}\) (blue curve), \(C_{1B}\) (orange curve), \(C_{2A}\) (yellow curve), and \(C_{2B}\) (purple curve) calculated from Fig. 2a. (b) Enlarged view of short-term cross-correlation values. (c) Accumulated rewards for Player 1 (blue curve), Player 2 (orange curve), and the team (black curve) in the decision-making. (d) Conflict rate between Players 1 and 2 in decision-making.
