Figure 4
From: Conflict-free joint decision by lag and zero-lag synchronization in laser network

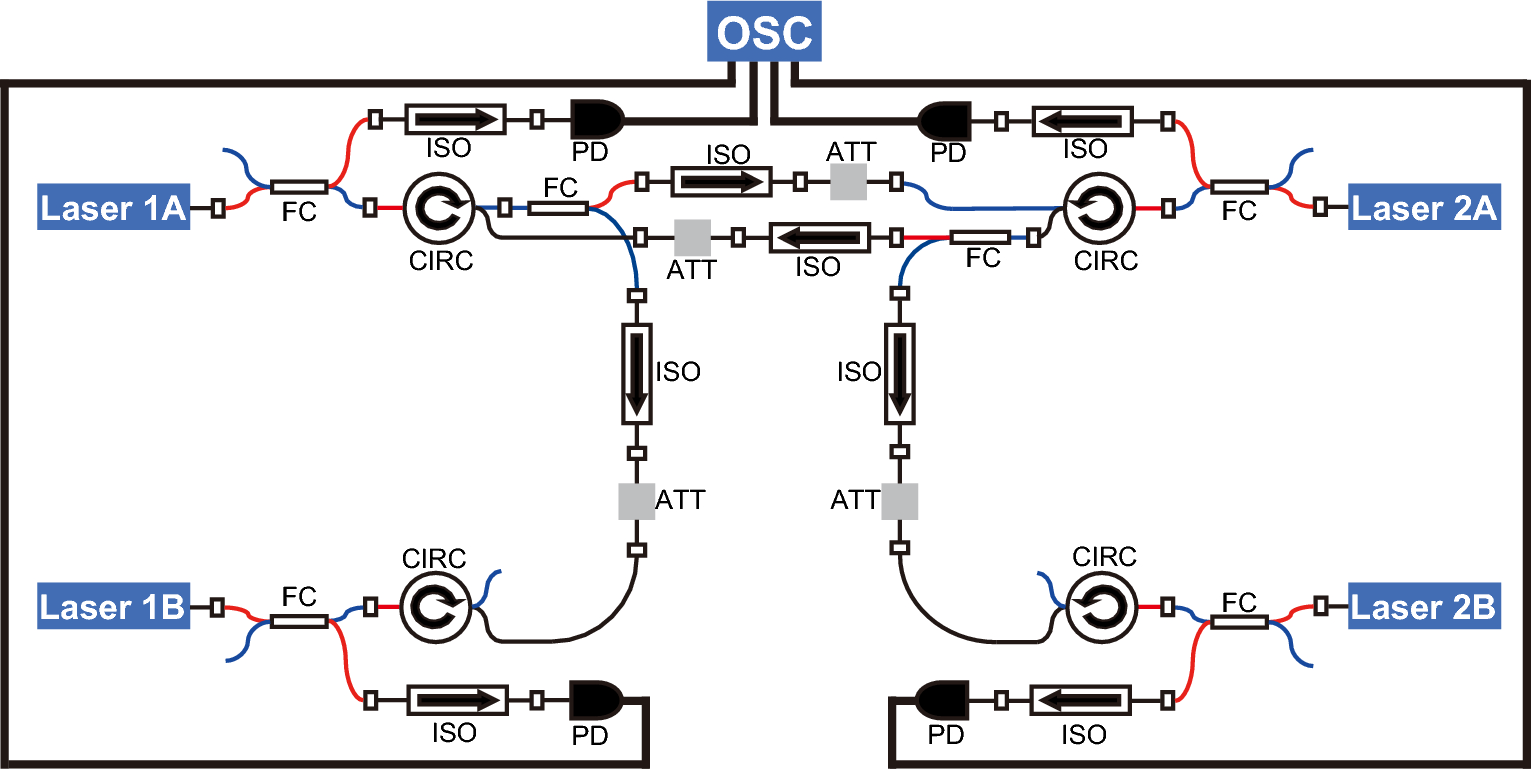

Experimental setup of the proposed decision-making system. ATT: voltage-controlled variable attenuator, CIRC: optical circulator, ISO: optical isolator, FC: fiber coupler, OSC: oscilloscope, PD: photodetector.
