Figure 5
From: Conflict-free joint decision by lag and zero-lag synchronization in laser network

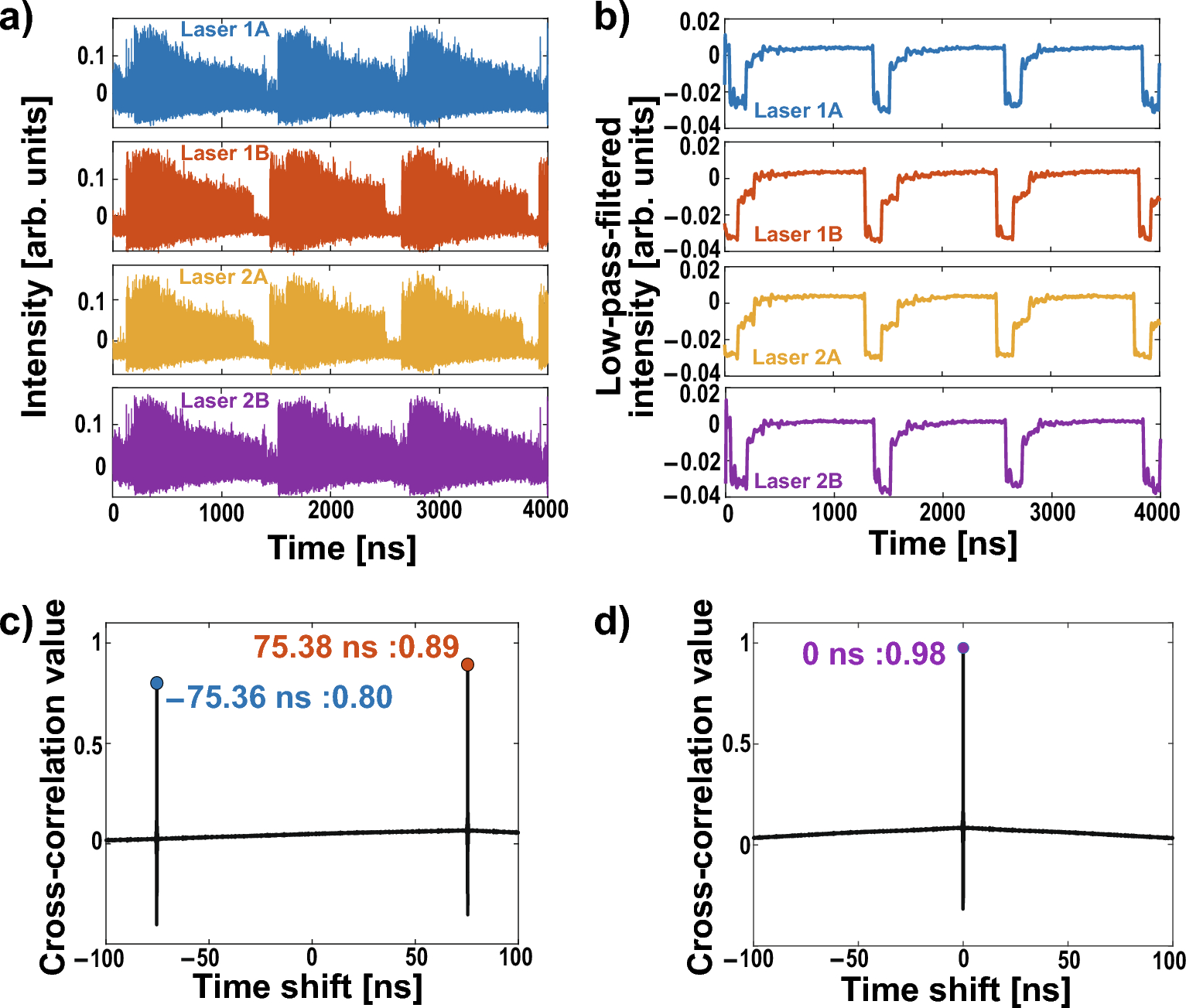

Experimental results: temporal waveforms and cross-correlation values. (a) Temporal waveforms of laser intensities. (b) Low-pass filtered temporal waveforms of laser intensities. (c) Cross-correlation value between Lasers 1A and Laser 1B (\({{\hat{C}}}_{1A,1B}(0)\)). (d) Cross-correlation value between Lasers 1A and Laser 2B (\({{\hat{C}}}_{1A,2B}(0)\)).
