Figure 6
From: Conflict-free joint decision by lag and zero-lag synchronization in laser network

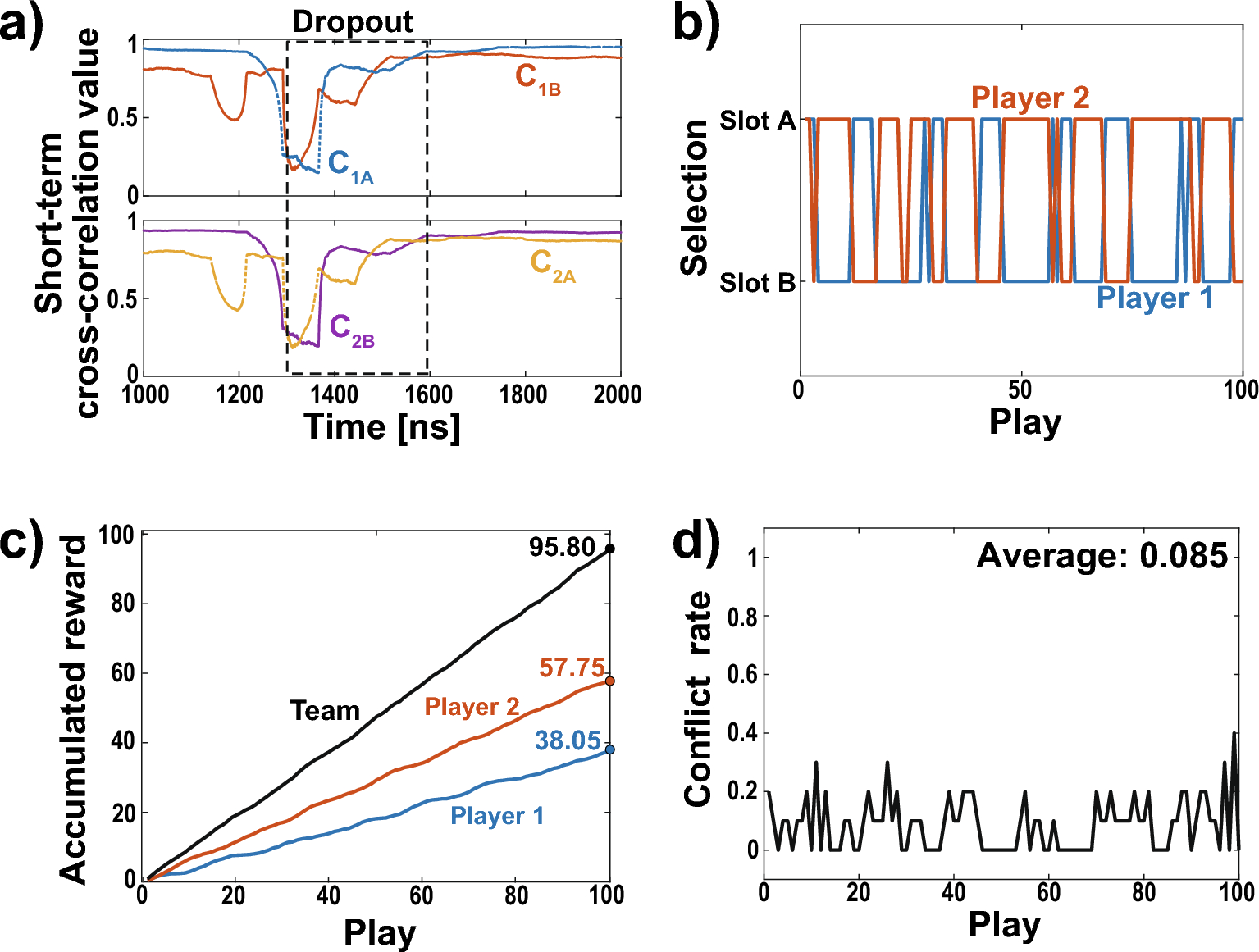

Experimental results: short-term cross-correlation values and decision-making. (a) Enlarged view of short-term cross-correlation values \(C_{1A}\) (blue curve), \(C_{1B}\) (orange curve), \(C_{2A}\) (yellow curve), and \(C_{2B}\) (purple curve) calculated from Fig. 5a. (b) Selection of Player 1 (blue curve), Player 2 (orange curve), and the team (black curve) in the decision-making. (c) Averaged accumulated reward of Player 1 (blue curve), Player 2 (orange curve), and team (black curve) in the decision-making. (d) Averaged conflict rate between Player 1 and 2 in the decision-making.
