Figure 8
From: Conflict-free joint decision by lag and zero-lag synchronization in laser network

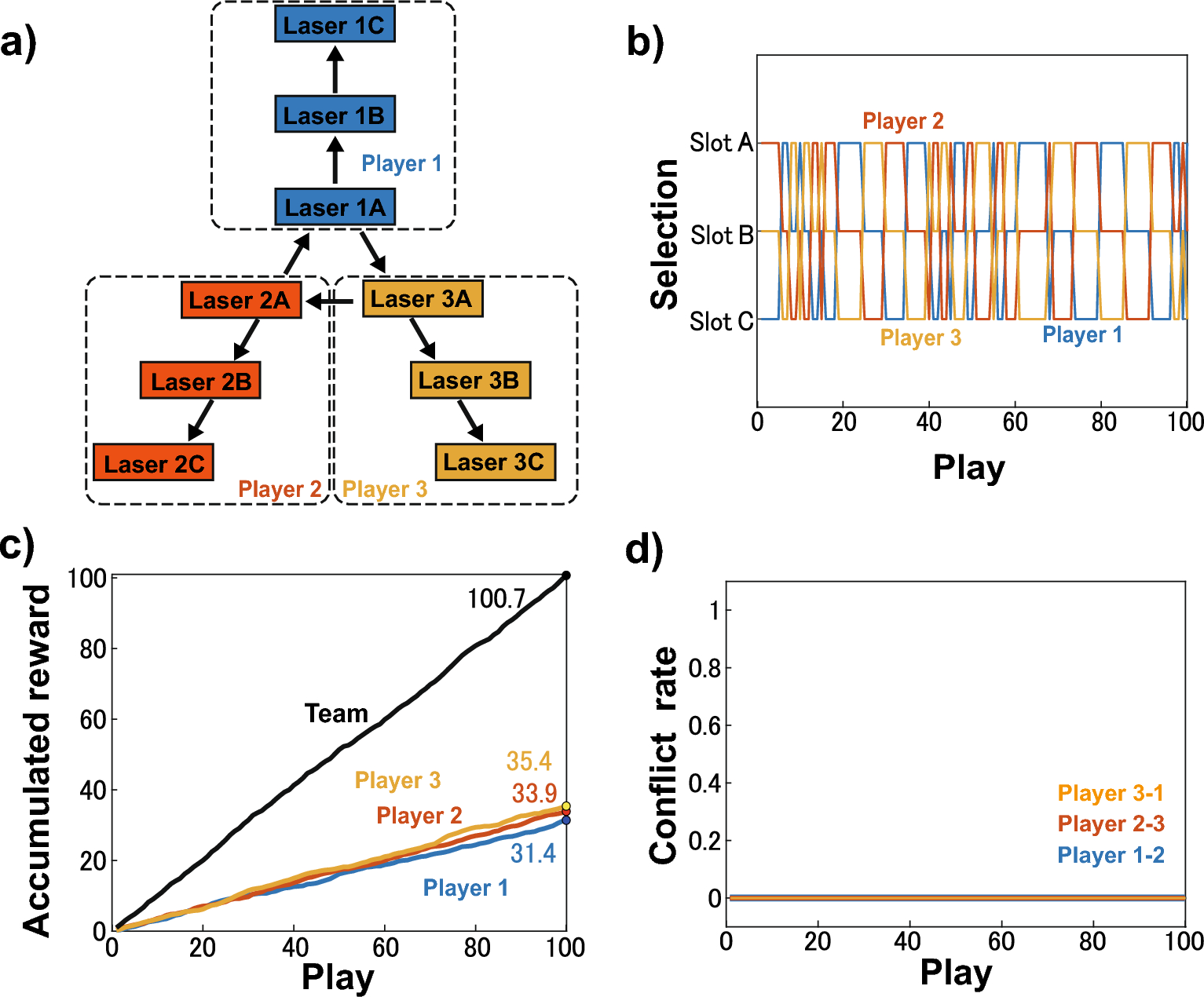

Scalability investigation. (a) Network configuration of the decision-making for three-player, three-slot situation. (b) Selections of Player 1 (blue curve), Player 2 (red curve), and Player 3 (orange curve) in the decision-making. (c) Averaged accumulated rewards of Player 1 (blue curve), Player 2 (red curve), Player 3 (orange curve), and team (black curve) in the decision-making. (d) Averaged conflict rate between Players 1 and 2 (blue curve), Players 2 and 3 (red curve), and Players 3 and 1 (orange curve) in the decision-making.
