Figure 9
From: Enhanced tetracycline degradation with TiO2/natural pyrite S-scheme photocatalyst

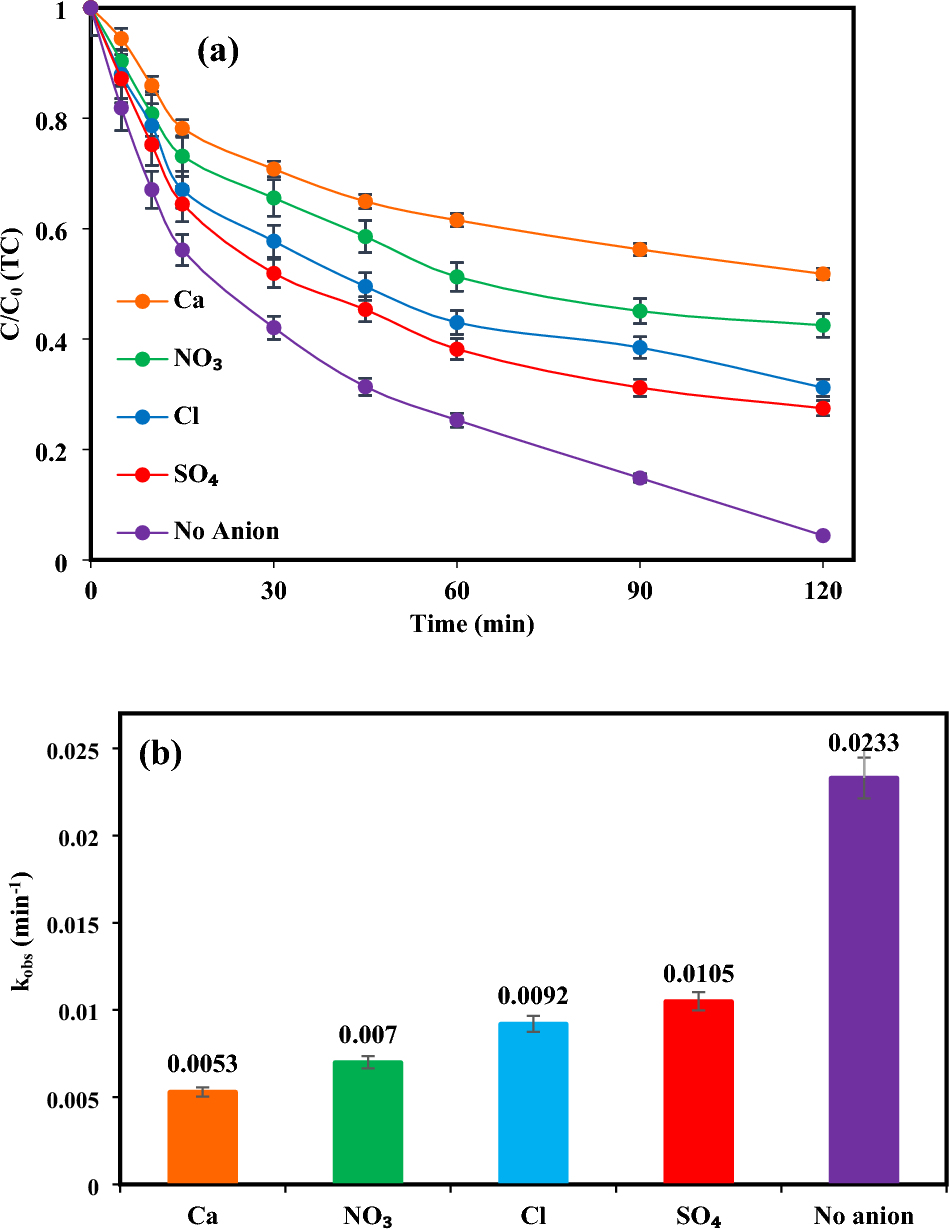

(a) TC Removal rate and and (b) the corresponding reaction rate constants at optimum conditions ([TC] = 30 mg/L, pH = 7, catalyst doe = 2 g/L and light intensity = 60 mW/cm2).
