Figure 3

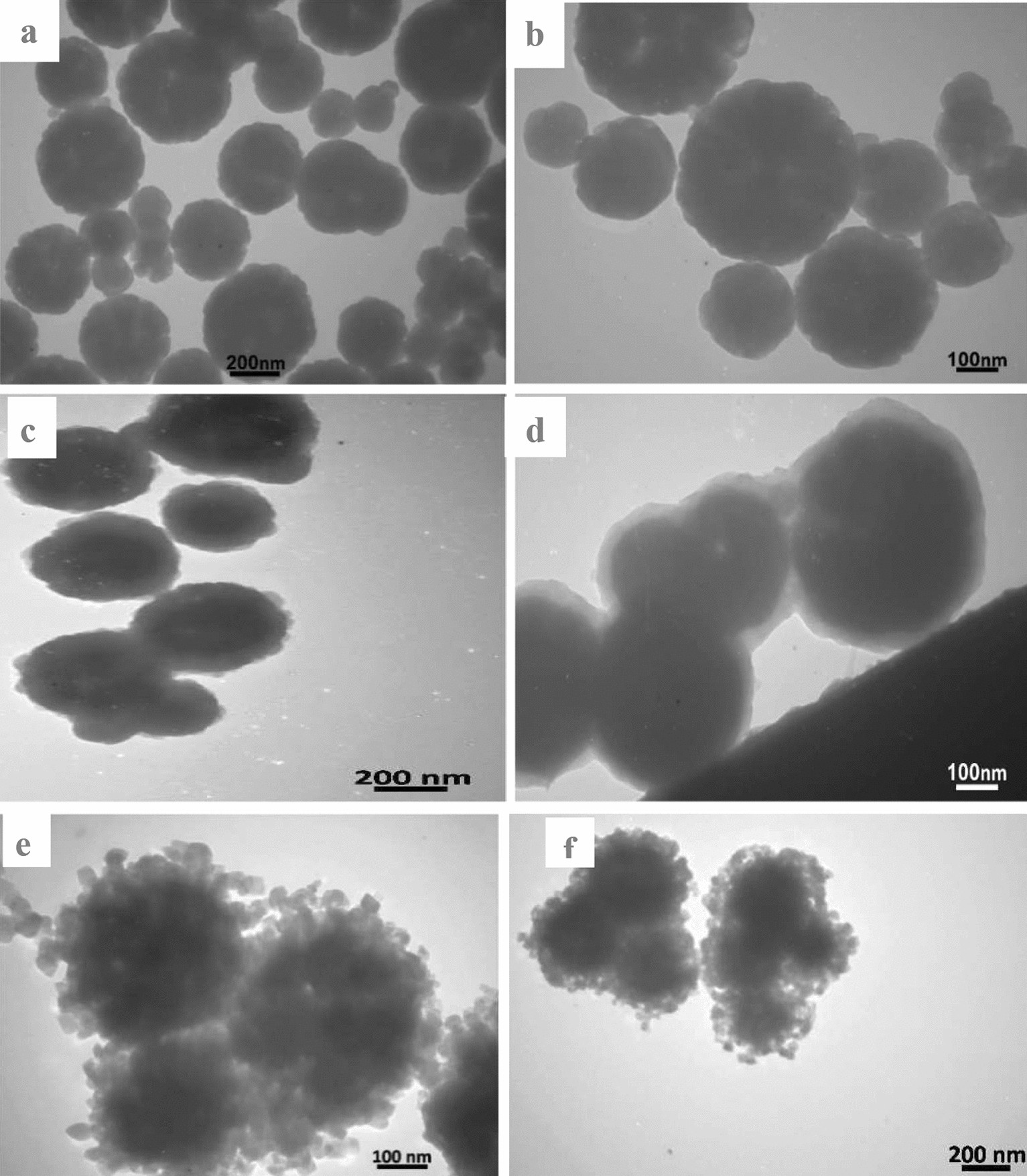

TEM analysis of (a and b) Fe3O4, (c and d) Fe3O4/MIL-100(Fe) nanocomposite and (e and f) Fe3O4/MIL-100(Fe)/TiO2 photocatalyst in two different magnifications.
Figure 3 | Scientific Reports
TEM analysis of (a and b) Fe3O4, (c and d) Fe3O4/MIL-100(Fe) nanocomposite and (e and f) Fe3O4/MIL-100(Fe)/TiO2 photocatalyst in two different magnifications.
