Figure 7
From: Spectrum analysis of digital UPWM signals generated from random modulating signals

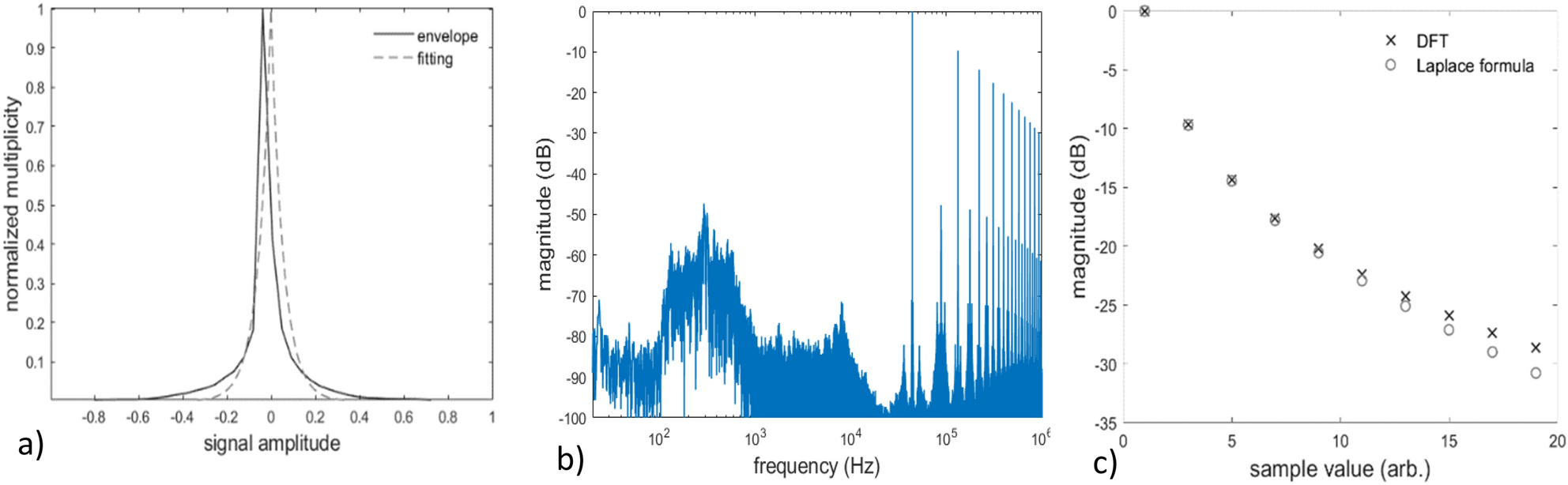

(a) envelope and Laplace fitting curve of the histogram and (b) computationally evaluated DFT spectrum of a 5s female speech extract; (c) comparative estimation of the DFT coefficients via DFT of the UPWM signal and via the closed-form Laplace formula.
