Figure 6

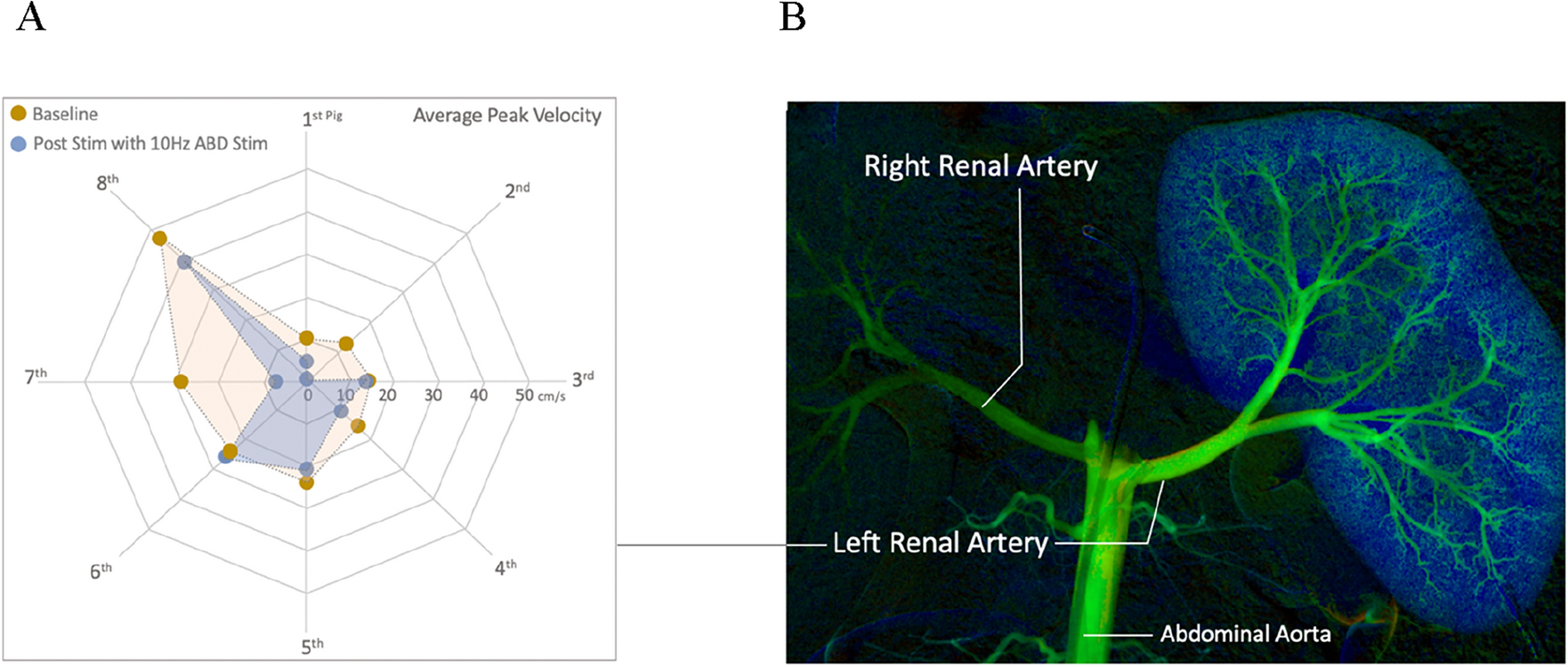

Renal artery stimulation output. (A) Radar plot displaying the baseline and post stim response in APV to 10Hz abdominal (ABD) stimulation (A10Hz) across the 8 pigs. (B) DSA image of the porcine arterial anatomy used as a guide for intra-arterial recordings of left renal artery.
