From: In vivo interference of pea aphid endosymbiont Buchnera groEL gene by synthetic peptide nucleic acids

Figure 1

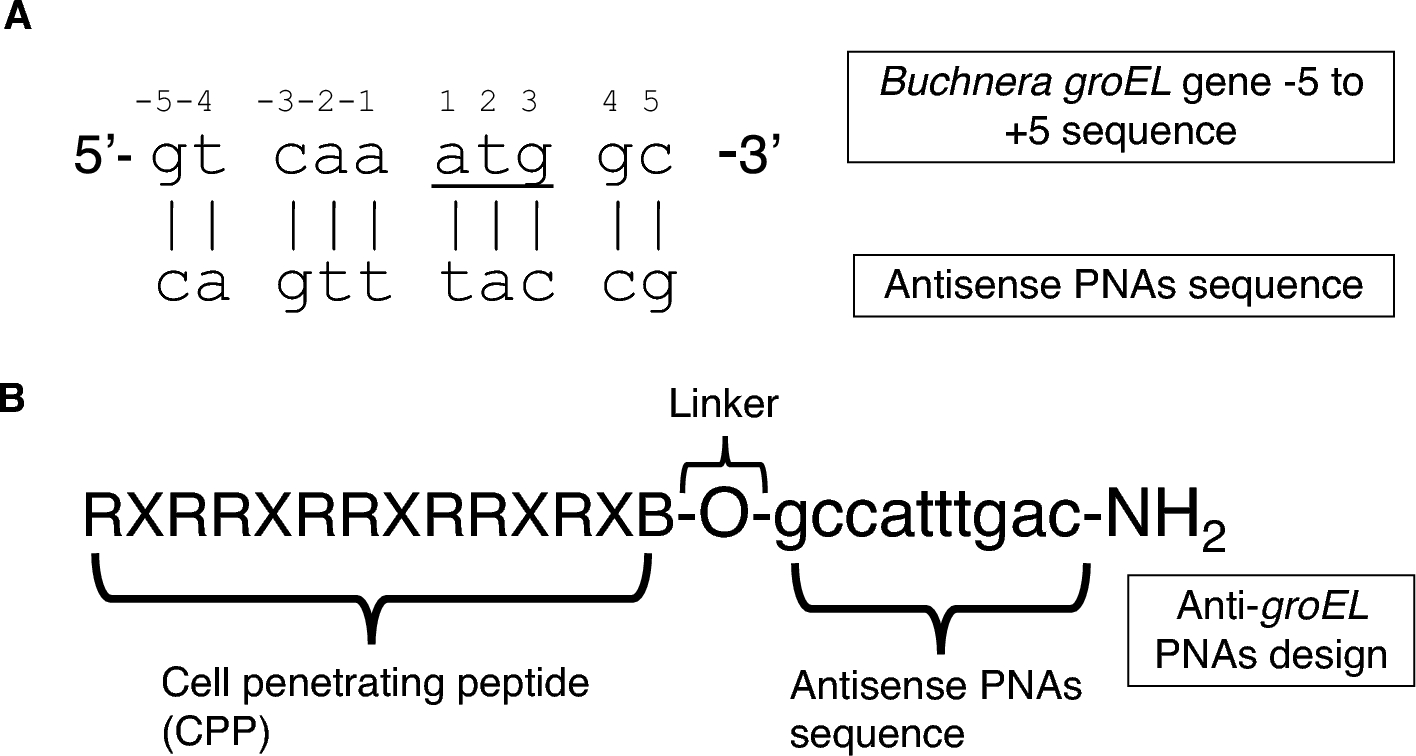

Design of peptide-conjugated antisense PNAs for Buchnera groEL. The intervention site within Buchnera groEL, ranging from position − 5 to + 5, was selected for the synthesis of peptide-conjugated antisense PNAs. (A) Depicts the Buchnera groEL sequence from − 5 to + 5, including the reverse complementary PNAs sequence; the start codon, ATG, is underlined. The design of anti-groEL PNAs incorporates an arginine-rich cell-penetrating peptide (CPP) conjugated to the antisense PNAs sequence (B).
