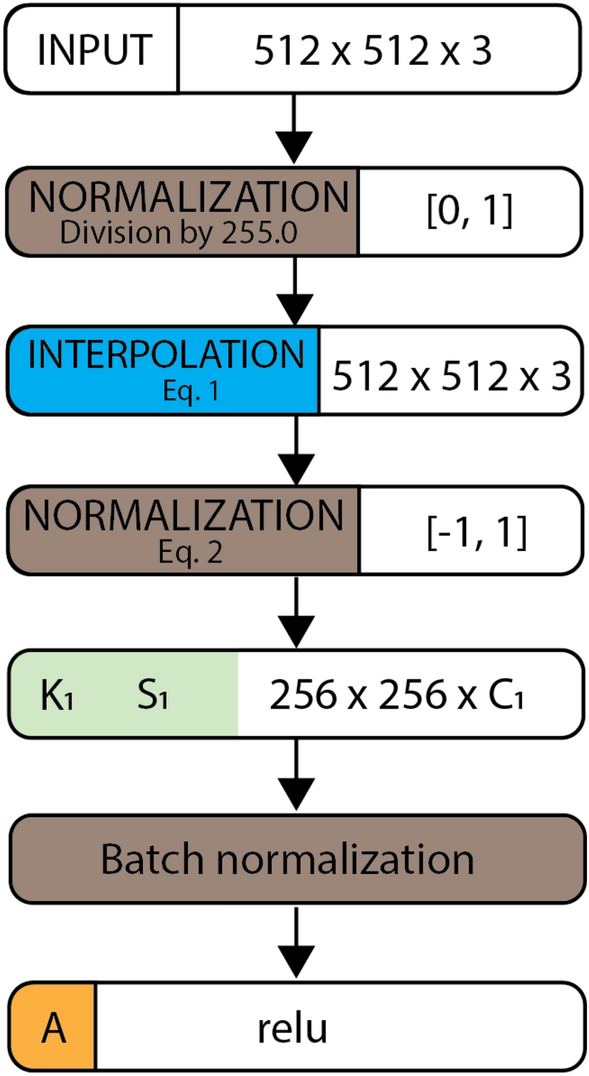

Figure 8

Represents the layers for the feature population block that populate the channel number from 3 to C₁ using the convolution layer with the size of the convolution weight kernel (K₁) and a stride (S₁). The default value for stride S₁ is 2 × 2 pixels to move K₁. The dimension unit is given in pixels.
