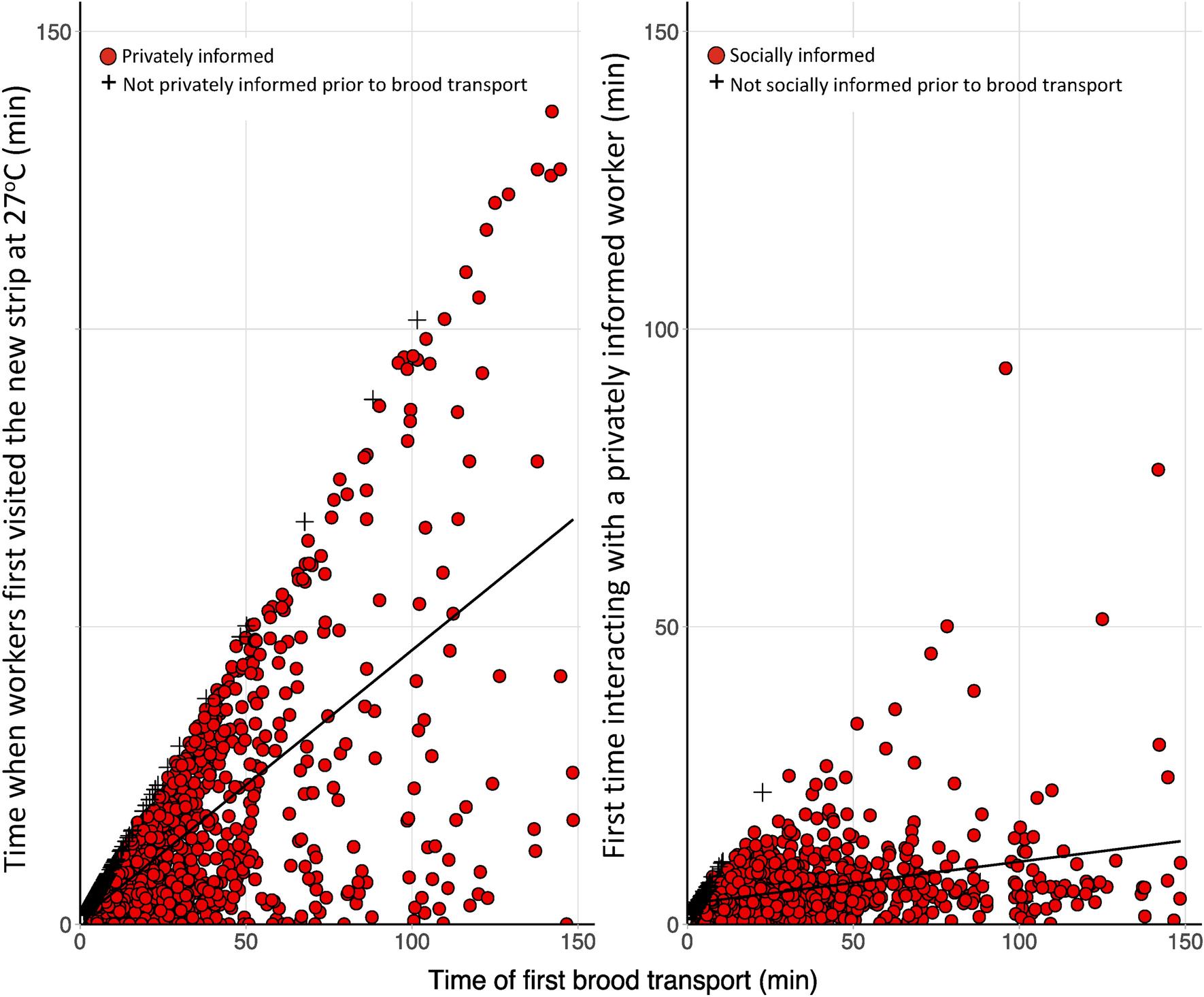

Figure 6

Time elapsed until workers first visited and acquired information about the location of the 27 °C strip (left) and time elapsed until workers first interacted with a privately informed worker (right) against time elapsed until their first brood transport. Filled circles denote transporters which were privately (left) or socially (right) informed prior to brood transport while + symbols indicate workers which were not privately (left) or socially (right) informed prior to brood transport. Data are from control subcolonies.
