Figure 3 | Scientific Reports

Figure 3

From: A randomised controlled trial investigating the causal role of the medial prefrontal cortex in mediating self-agency during speech monitoring and reality monitoring

Figure 3

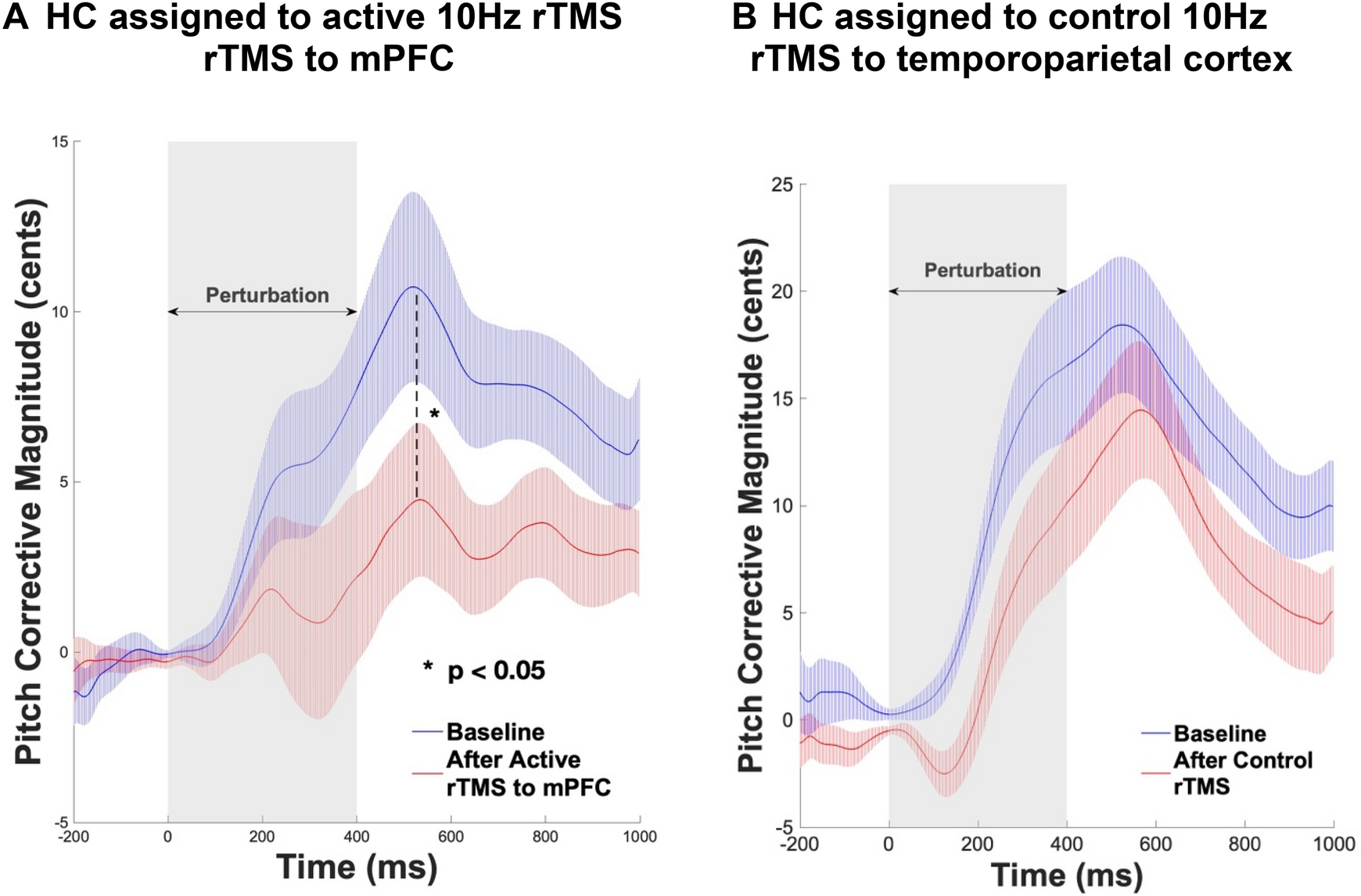

Mean pitch magnitude corrective responses during 100 cents pitch shifts, averaged across all participants at each time-point (i.e., baseline and after rTMS) in each condition shown for: (A) participants assigned to active rTMS applied to mPFC and (B) participants assigned to rTMS applied to left temporoparietal cortex. The grey rectangle illustrates the 400 ms duration of the experiment-induced pitched perturbation. Participants began responding to the applied perturbation at 117 ms after perturbation onset and peak response was attained at 536 ms after perturbation. Dashed lines represent the standard error of the corrective responses across all trials and participants for each condition and time-point.
