Figure 11
From: Sounding out maerl sediment thickness: an integrated data approach

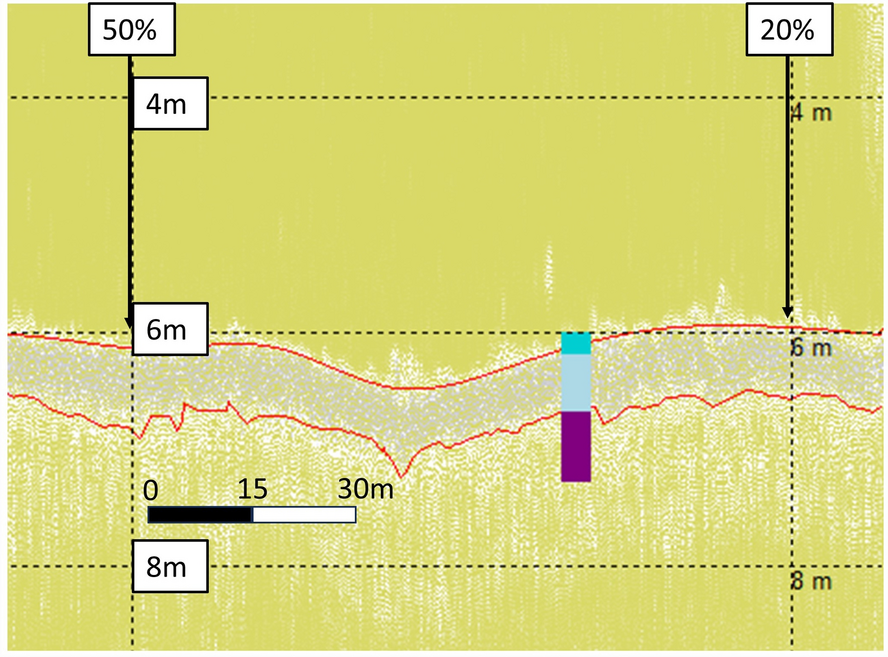

Wyre Maerl (WM11) HF1 data with aligned core data (cores WM 1A, 1B, and 1C) up to shell fragments, and termed the Shallow Sediment Thickness (SST), at 0.7 m49. Top 0.2 m layer of live maerl in dark turquoise, mixed maerl and gravel layer up to SST at 0.7 m in light blue, and anoxic fine mud and gravel layer down to Total Sediment Thickness (TST) of 1.3 m in purple. Top red line highlights the seabed, bottom red line highlights the SST identified in the core.
