Figure 12
From: Sounding out maerl sediment thickness: an integrated data approach

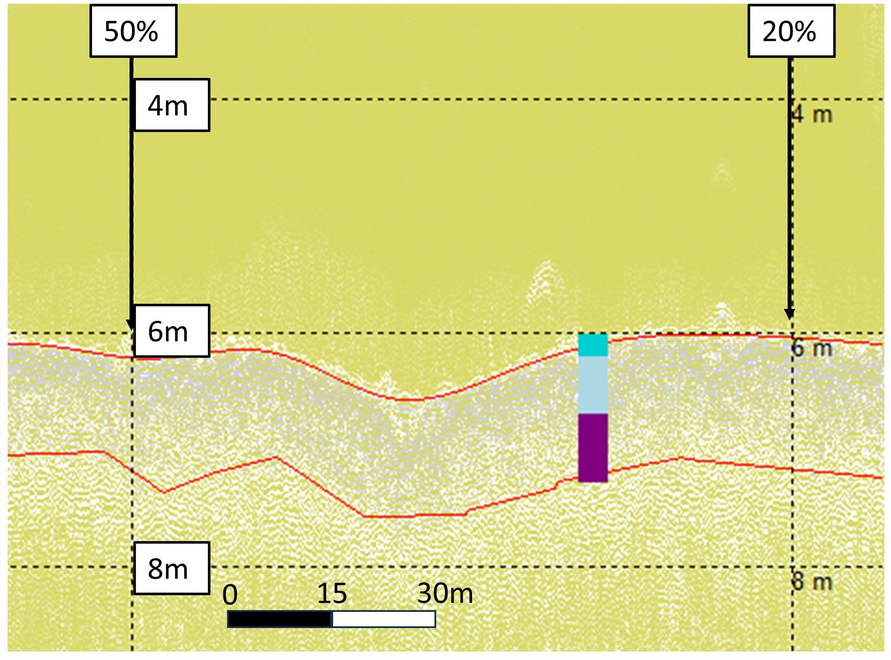

Wyre Maerl (WM11) LF3 data with aligned core data (cores WM 1A, 1B, and 1C) up to Total Sediment Thickness (TST) at 1.3 m49. Top 0.2 m layer of live maerl in dark turquoise, mixed maerl and gravel layer up to Shallow Sediment Thickness (SST) at 0.7 m in light blue, and anoxic fine mud and gravel layer down to TST of 1.3 m in purple. Top red line highlights the seabed, bottom red line highlights the TST identified from the core.
