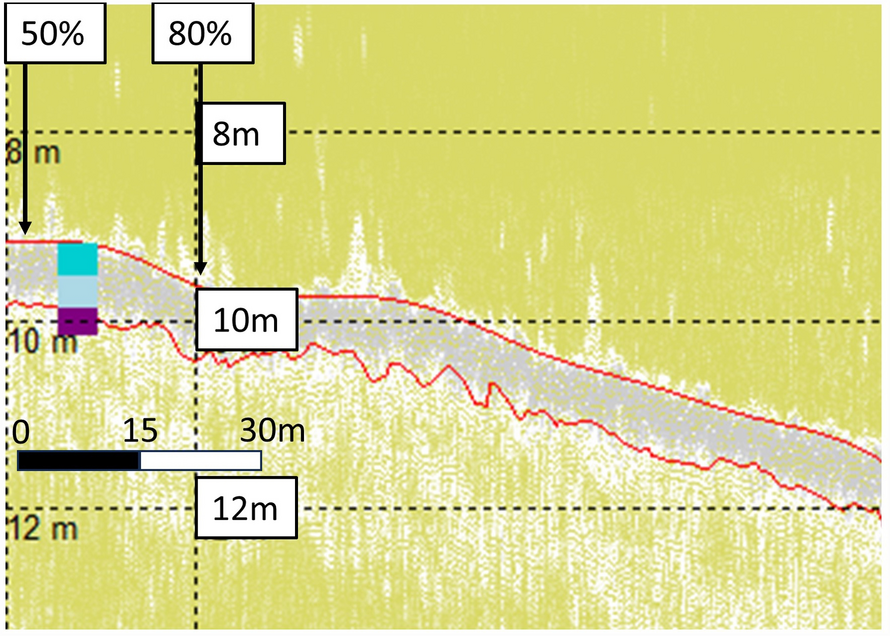

Figure 13

WF12 HF1 data with aligned core data (cores WF 2A, 2B, and 2C) up to shell fragments, and termed the Shallow Sediment Thickness (SST), at 0.7 m⁴⁹. Top 0.35 m layer of live maerl in dark turquoise, mixed maerl and gravel layer up to SST at 0.7 m in light blue, and anoxic fine mud and gravel layer down to Total Sediment Thickness (TST) of 1.0 m in purple. Top red line highlights the seabed, bottom red line highlights the SST identified in the core.
