From: Sounding out maerl sediment thickness: an integrated data approach

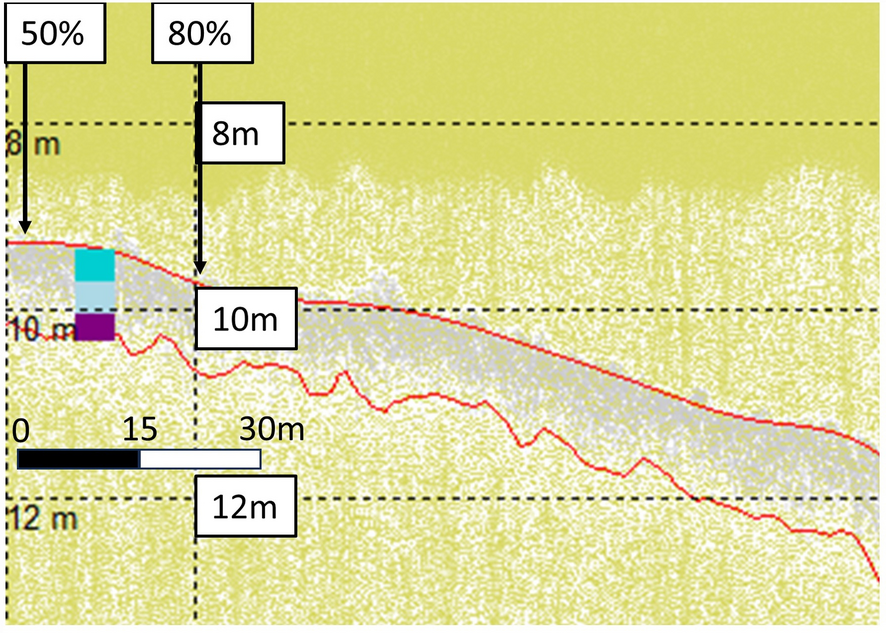

WF12 LF3 data with aligned core data (cores WF 2A, 2B, and 2C) up to Total Sediment Thickness (TST) at 1.0 m49. Top 0.35 m layer of live maerl in dark turquoise, mixed maerl and gravel layer up to SST at 0.7 m in light blue, and anoxic fine mud and gravel layer down to TST of 1.0 m in purple. Top red line highlights the seabed, bottom red line highlights the TST identified from the core.
