Figure 1
From: Predicting extremely low body weight from 12-lead electrocardiograms using a deep neural network

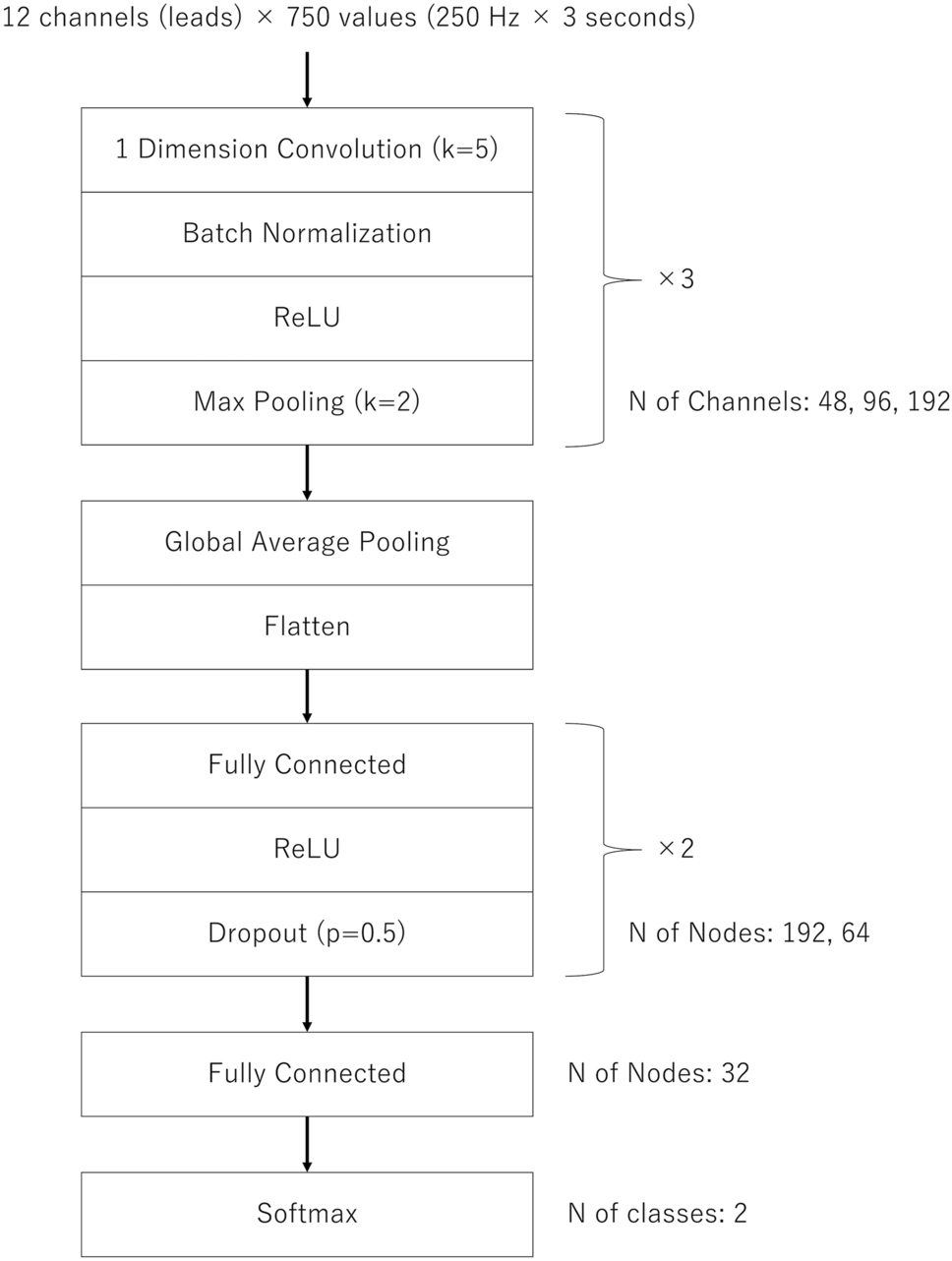

Structure of deep learning model. The network consists of three blocks of one-dimensional convolutional layers and three blocks of fully connected layers. Kernel size, pooling size, number of channels in the convolution layers, and number of nodes in fully connected layers are indicated. ReLU rectified linear unit.
