Figure 2
From: Silicone-based highly stretchable multifunctional fiber pumps

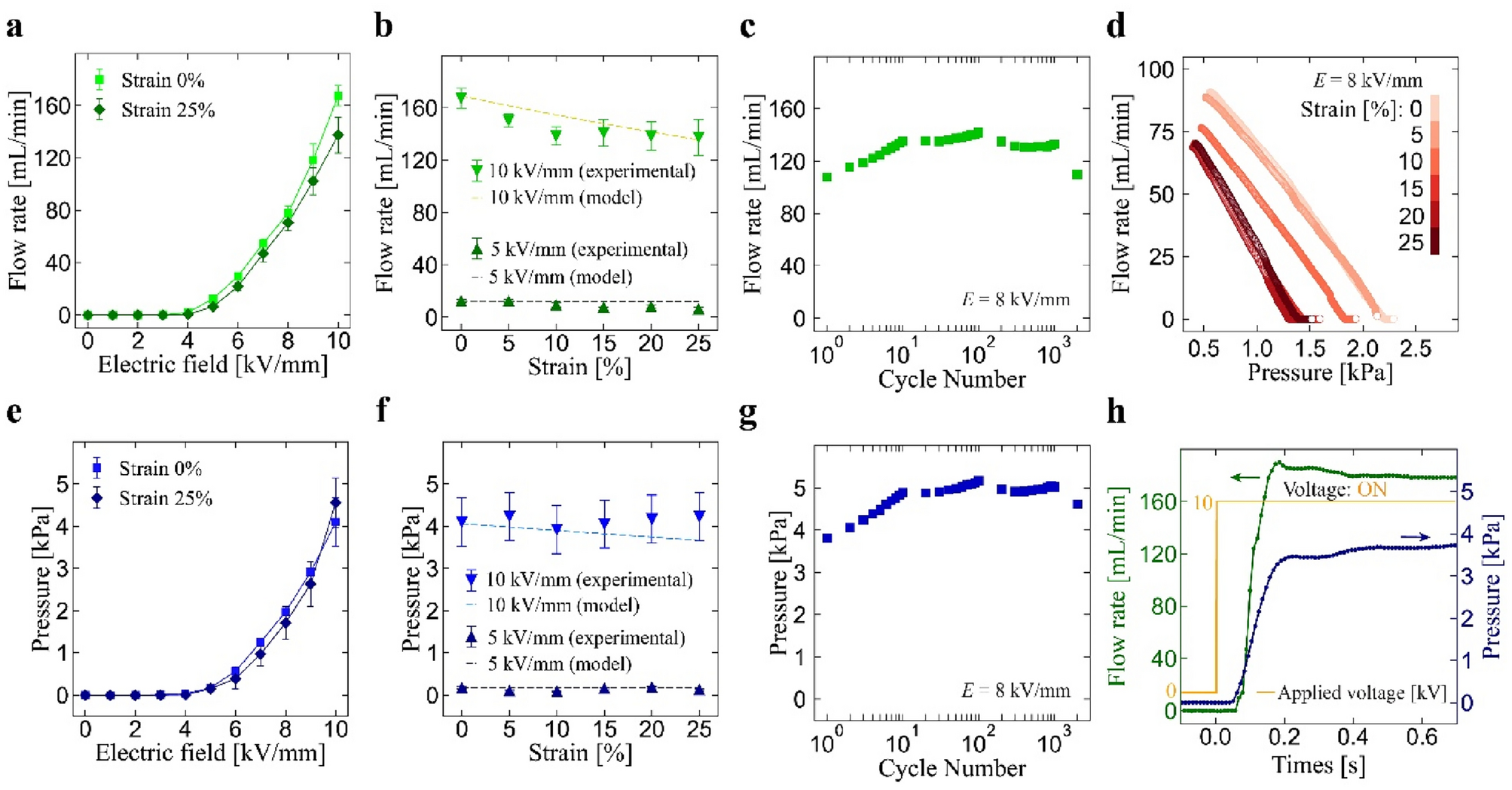

Characterization results of flow rate and pressure under different strains. Values represent the mean ± standard deviation from n = 3 samples (indicated with error bars). Flow rate under: (a) 0% and 25% strain at applied electric field of 0–10 kV/mm, (b) 0–25% strain at applied electric field of 5 and 10 kV/mm, and (c) cyclic strain at applied electric field of 8 kV/mm (number of cycles 2000). (d) Relation between the flow rate and pressure at applied electric field of 8 kV/mm. Pressure under: (e) 0% and 25% strain at applied electric field of 0–10 kV/mm, (f) 0–25% strain at applied electric field of 5 and 10 kV/mm, and (g) cyclic strain at applied electric field of 8 kV/mm (number of cycles 2000). (h) Response of flow rate and pressure at 0% strain (applied electric field 10 kV/mm).
