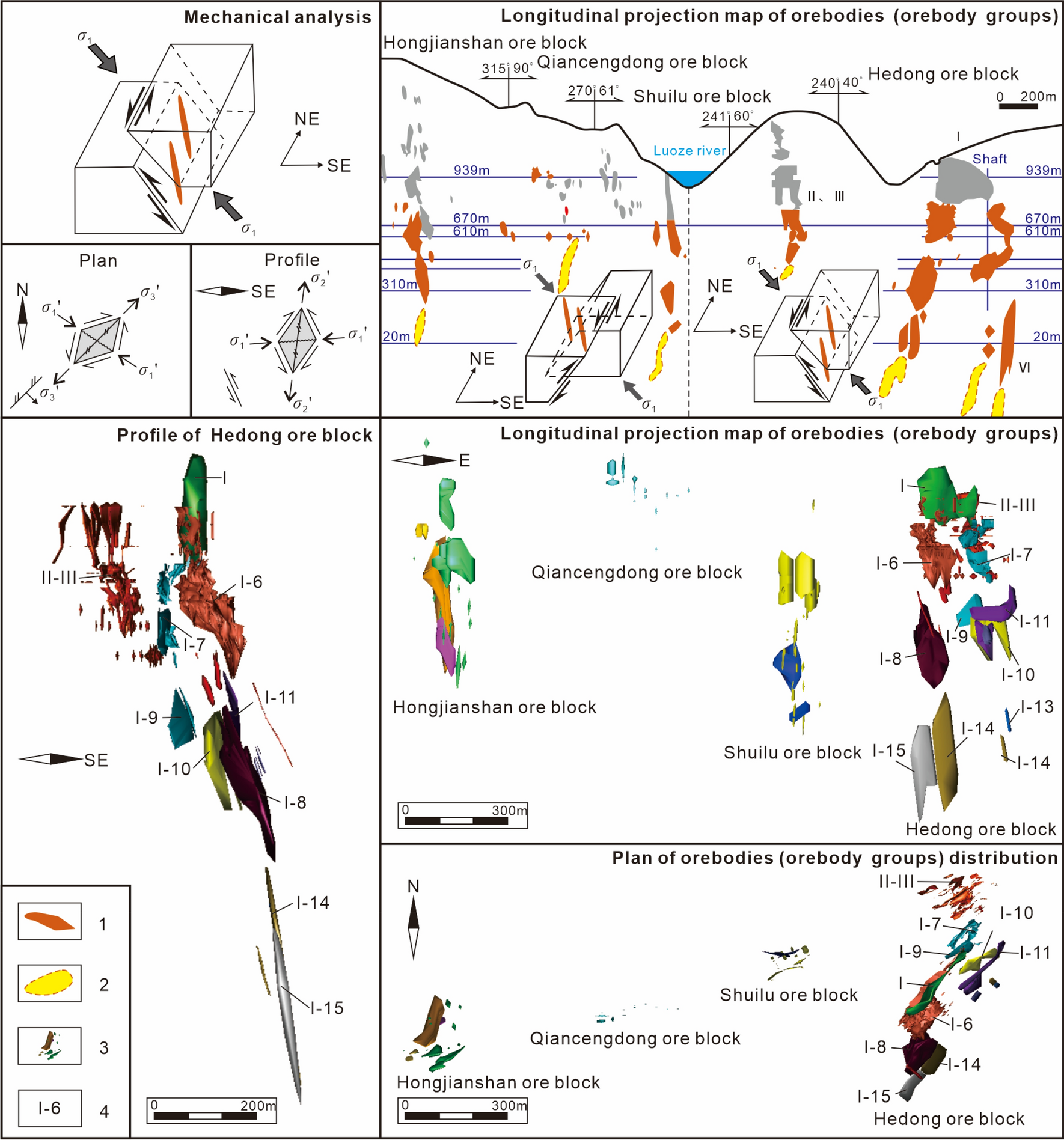

The underlying mechanical model of the spatial distribution of the deep orebodies and longitudinal projections of the Maoping Pb–Zn deposit. 1–known orebodies, 2–predicted orebodies, 3–3D display of known orebodies. 4–Known orebodies number. The underlying mechanical model of the spatial distribution of the deep orebodies and longitudinal projections of the Maoping Pb–Zn deposit.
