From: Oblique distribution patterns and the underlying mechanical model of orebody groups controlled by structures at different scales

Figure 5

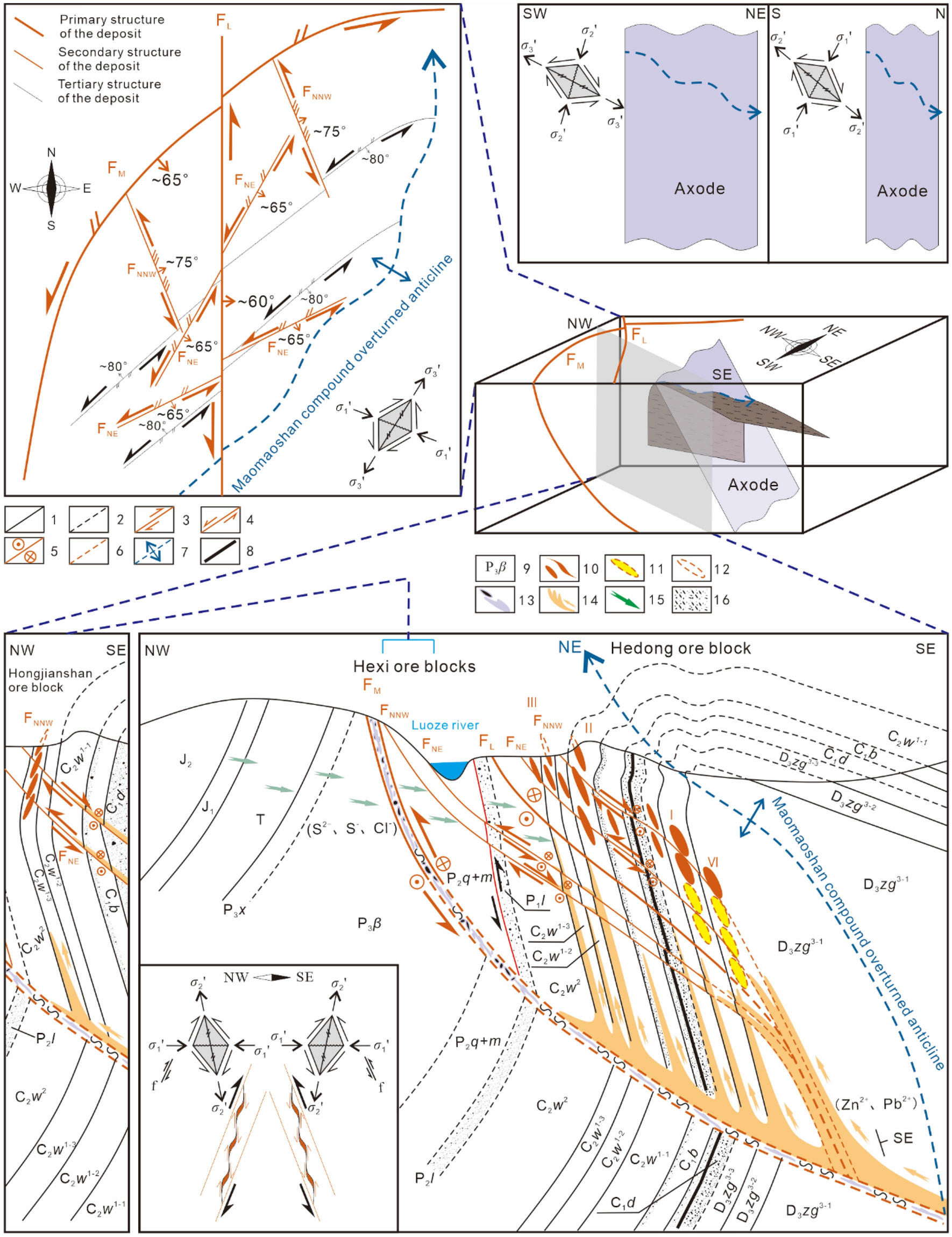

Comprehensive pattern map of ore-controlling of structure of the Maoping Pb–Zn deposit25. 1–Integrated contact, 2–Parallel unconformity contact, 3–Compressive fault, 4–Tensile fault, 5–Torsional fault, 6–Inferred fault, 7–Anticline, 8–Coal-bearing, 9–Formation code, 10–Known orebodies, 11–Predicting orebody, 12–Denuded orebody, 13–Dolomitization and its cemented limestone breccia, 14–Ore-forming metals fluids, 15–Reducing fluids, 16–Argillaceous and sandy clastic rock.
