From: Oblique distribution patterns and the underlying mechanical model of orebody groups controlled by structures at different scales

Figure 6

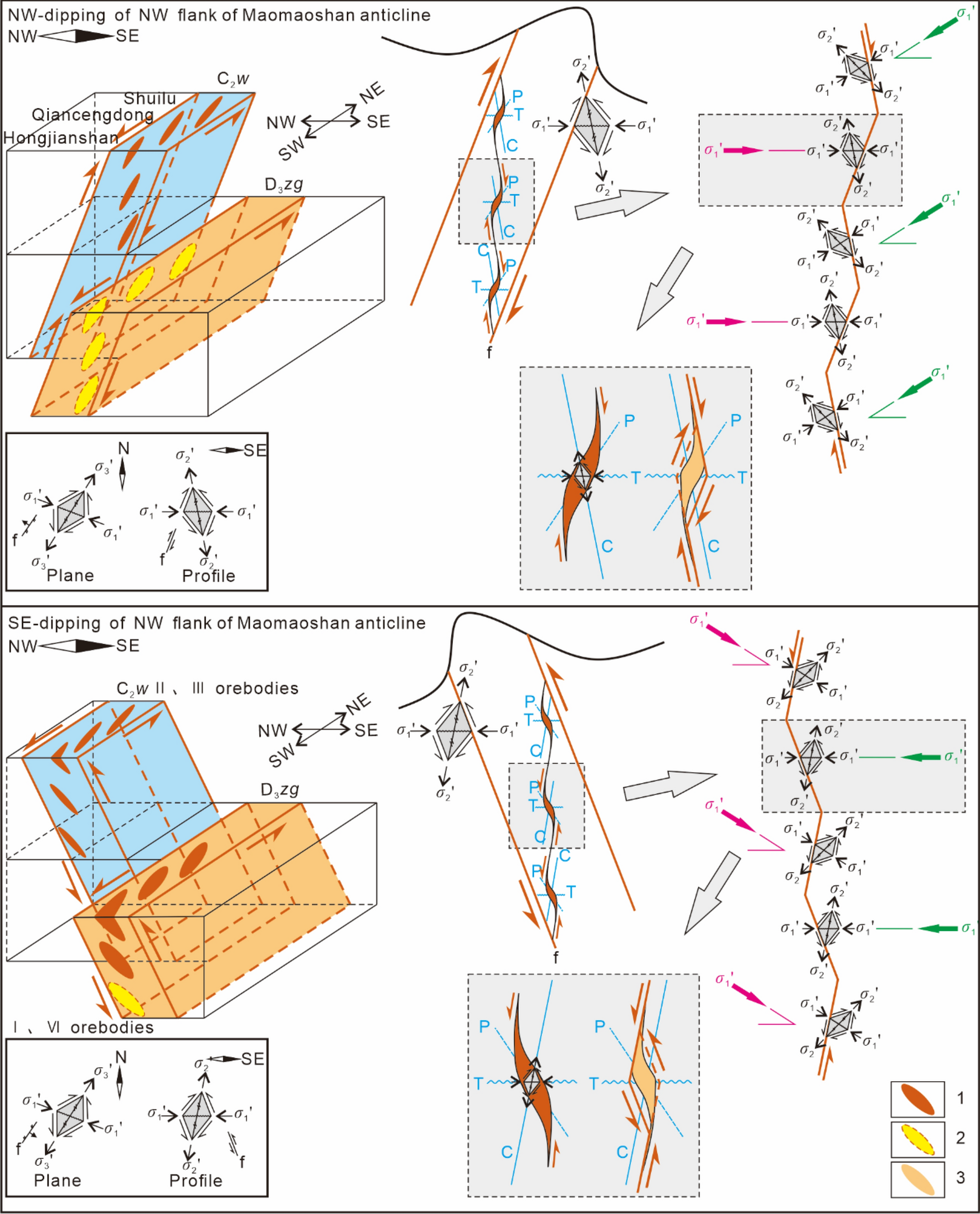

Schematic diagrams of the spatial distributions and the underlying mechanical model of the veins groups (orebodies) in the ore-bearing fault with different dips at the orebody groups scale. 1–Known orebody, 2–Predicted orebody, P is the long axis of the orebody centre, C is the compressional plane of the controlling orebody, and T is the tensile plane.
