From: Efficient removal of 2,4,6-trinitrotoluene (TNT) from industrial/military wastewater using anodic oxidation on boron-doped diamond electrodes

Figure 2

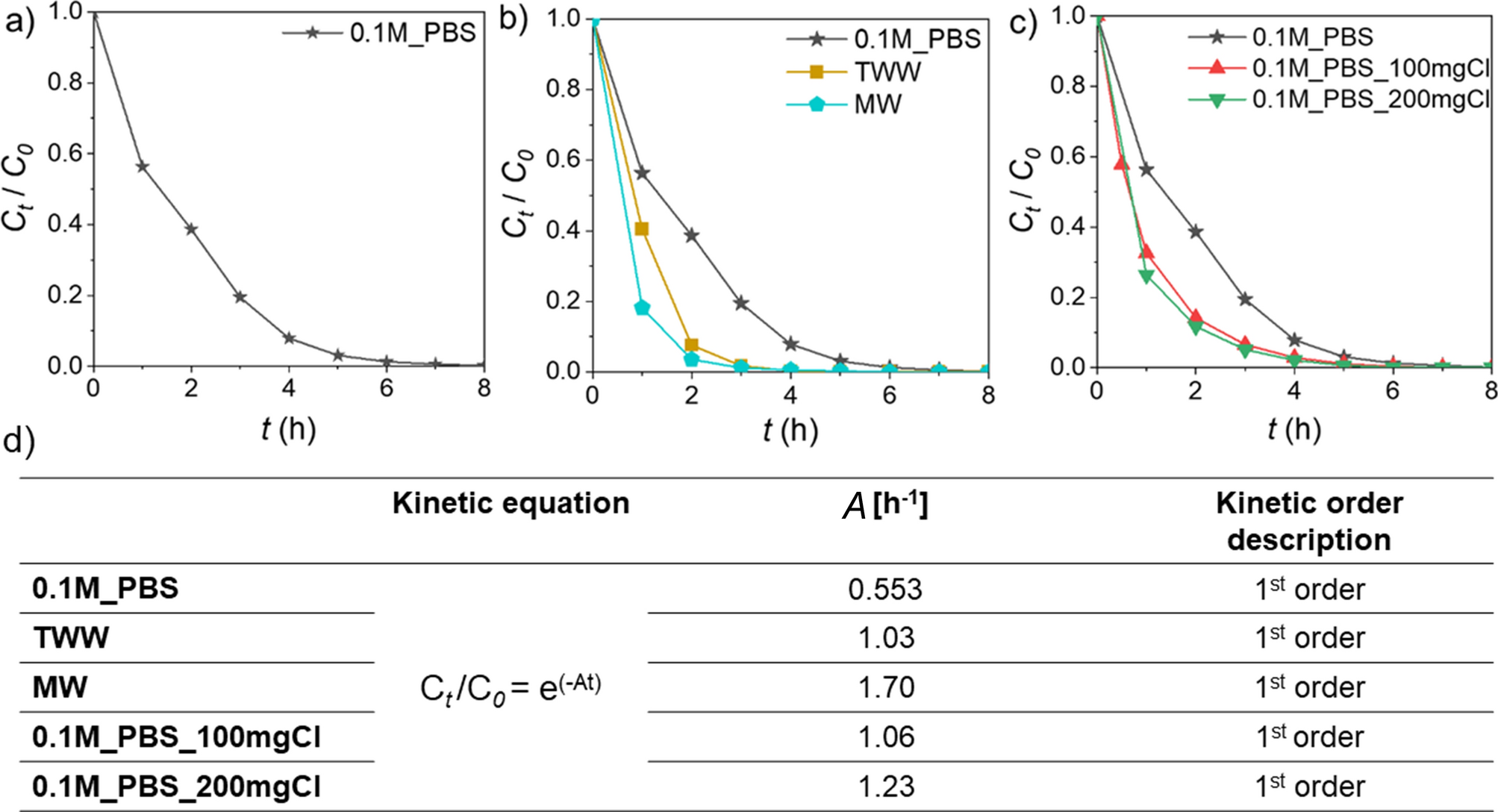

Trend with a time of oxidising TNT, normalised concerning the initial concentration (C0 = 50 mg L−1) based on HPLC–PDA results in (a) 0.1 M PBS, (b) saline artificial samples: 0.1M_PBS_100mgCl and 0.1M_PBS_200mgCl, (c) environmental samples: TWW and MW (0.1M_PBS sample is left as reference), (d) kinetic order description and kinetic equation of TNT removal rate (A—reaction rate constant [h−1], t—time [h]).
