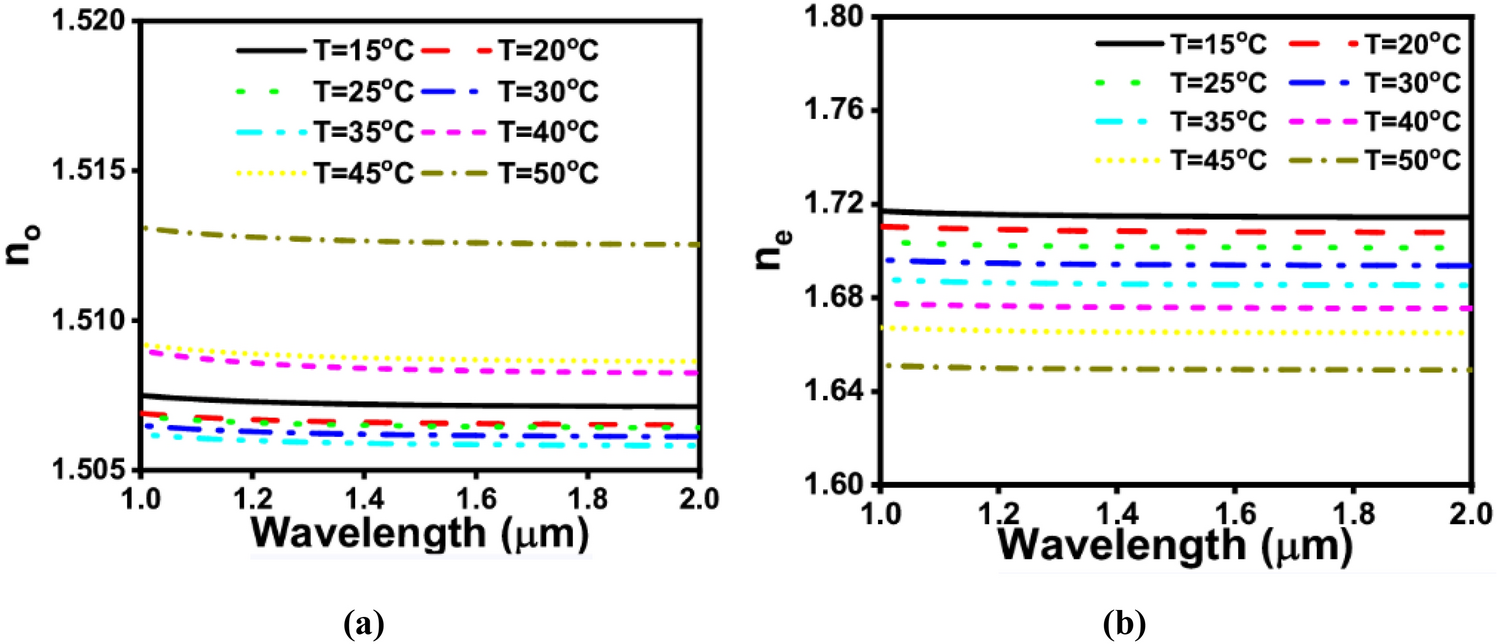

Figure 2
From: Asymmetric dual-core liquid crystal channel-based tunable mode converter
Temperature dependence of the (a) ordinary; no and (b) extraordinary; ne refractive indices of the NLC material of type E7 at different temperatures from 15 to 50 °C.
