Figure 3
From: Asymmetric dual-core liquid crystal channel-based tunable mode converter

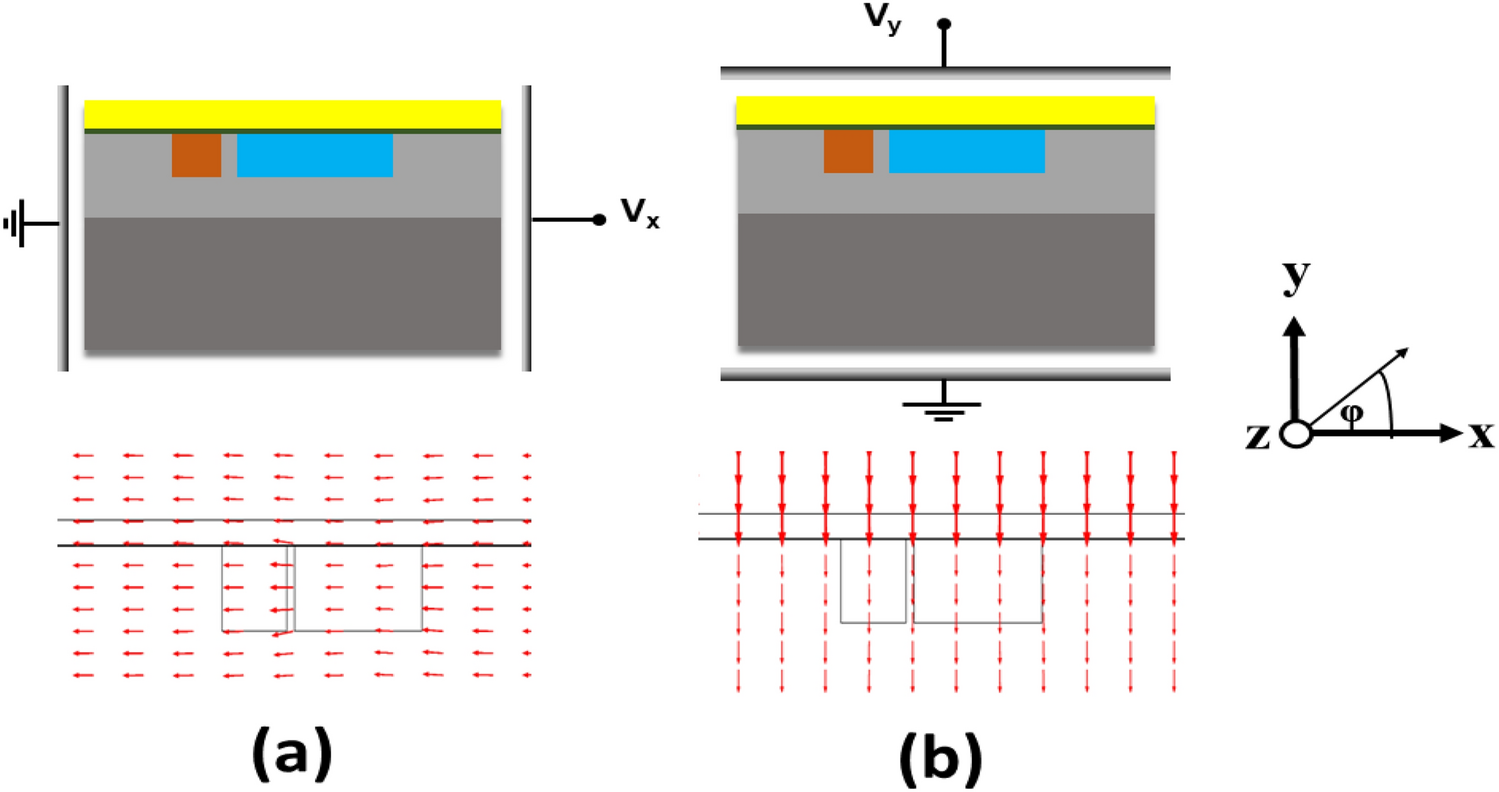

The E-field arrows inside the proposed structure while applying an external E-field between two sets of electrodes to control the orientation angle of NLC molecules at (a) φ = 0°, and (b) φ = 90°.
