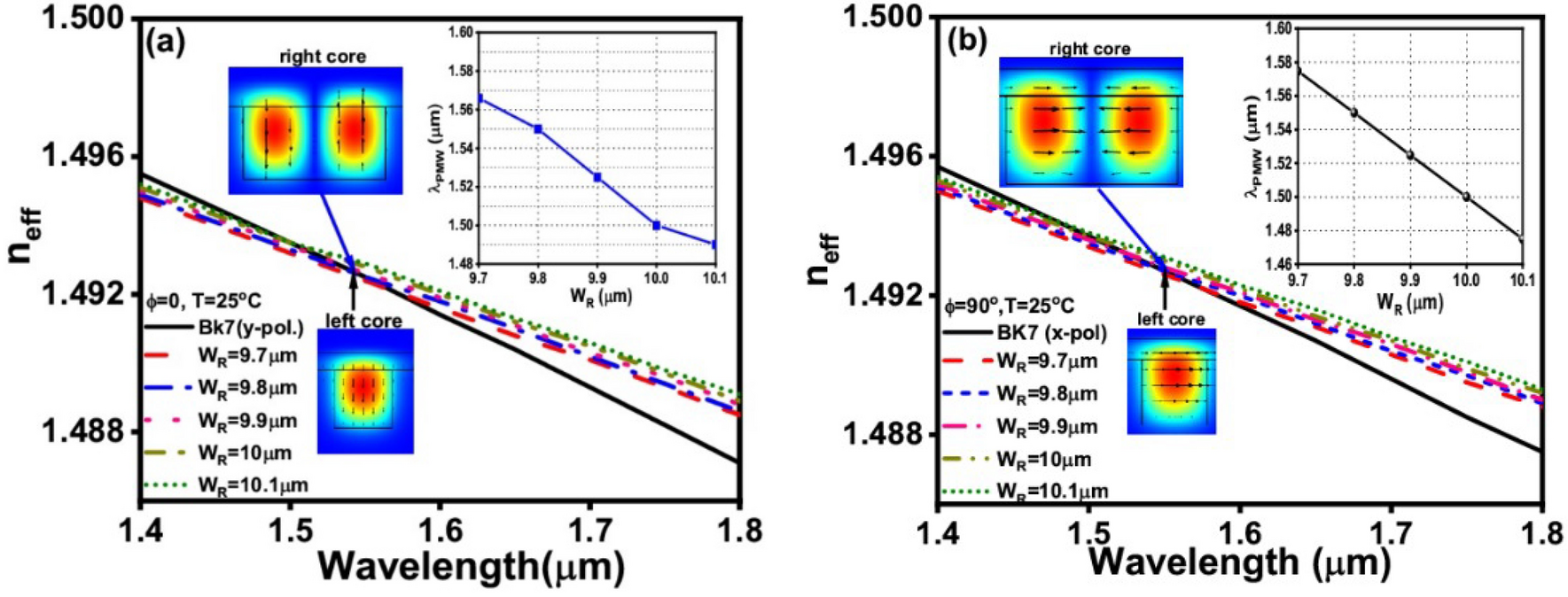

Figure 5
From: Asymmetric dual-core liquid crystal channel-based tunable mode converter
WR variation for practical mode index dependence on the wavelength of the fundamental mode in the left-side core and the first-order mode in the right-side core at temperature 25 °C in both cases: (a) φ = 0° and (b) φ = 90°.
