Figure 6
From: The trajectory of carbon emissions and terrestrial carbon sinks at the provincial level in China

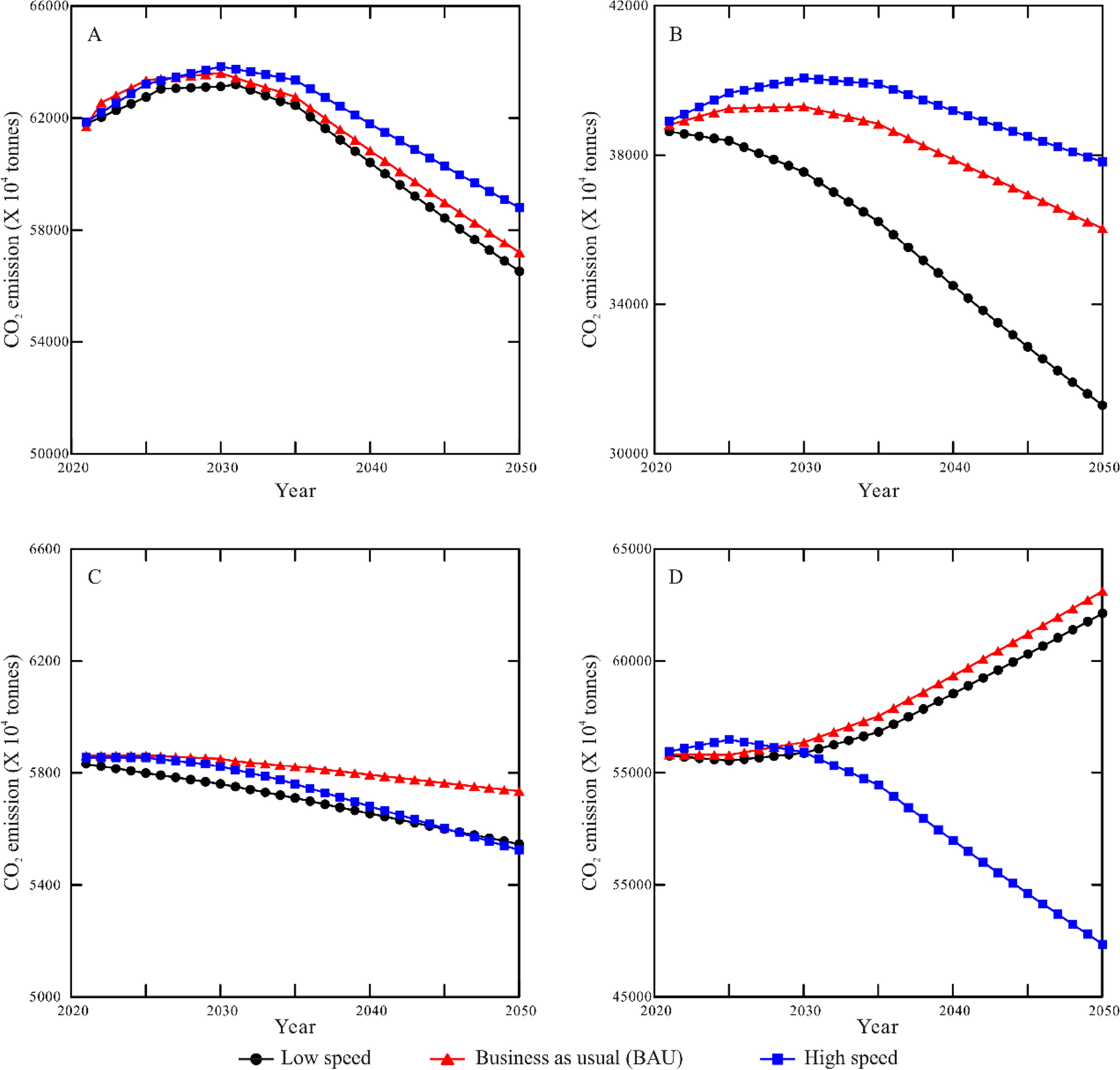

Energy-related carbon dioxide emissions of 4 regions and provinces in low speed, business-as-usual (BAU) and high speed scenarios for the period 2020–2050. (A) Energy-related carbon dioxide emissions of Xinjiang Uygur autonomous region in three different scenarios for the period 2020–2050. (B) Energy-related carbon dioxide emissions of Zhejiang province in three different scenarios for the period 2020–2050. (C) Energy-related carbon dioxide emissions of Beijing city in three different scenarios for the period 2020–2050. (D) Energy-related carbon dioxide emissions of Shaanxi province in three different scenarios for the period 2020–2050.
