Figure 5

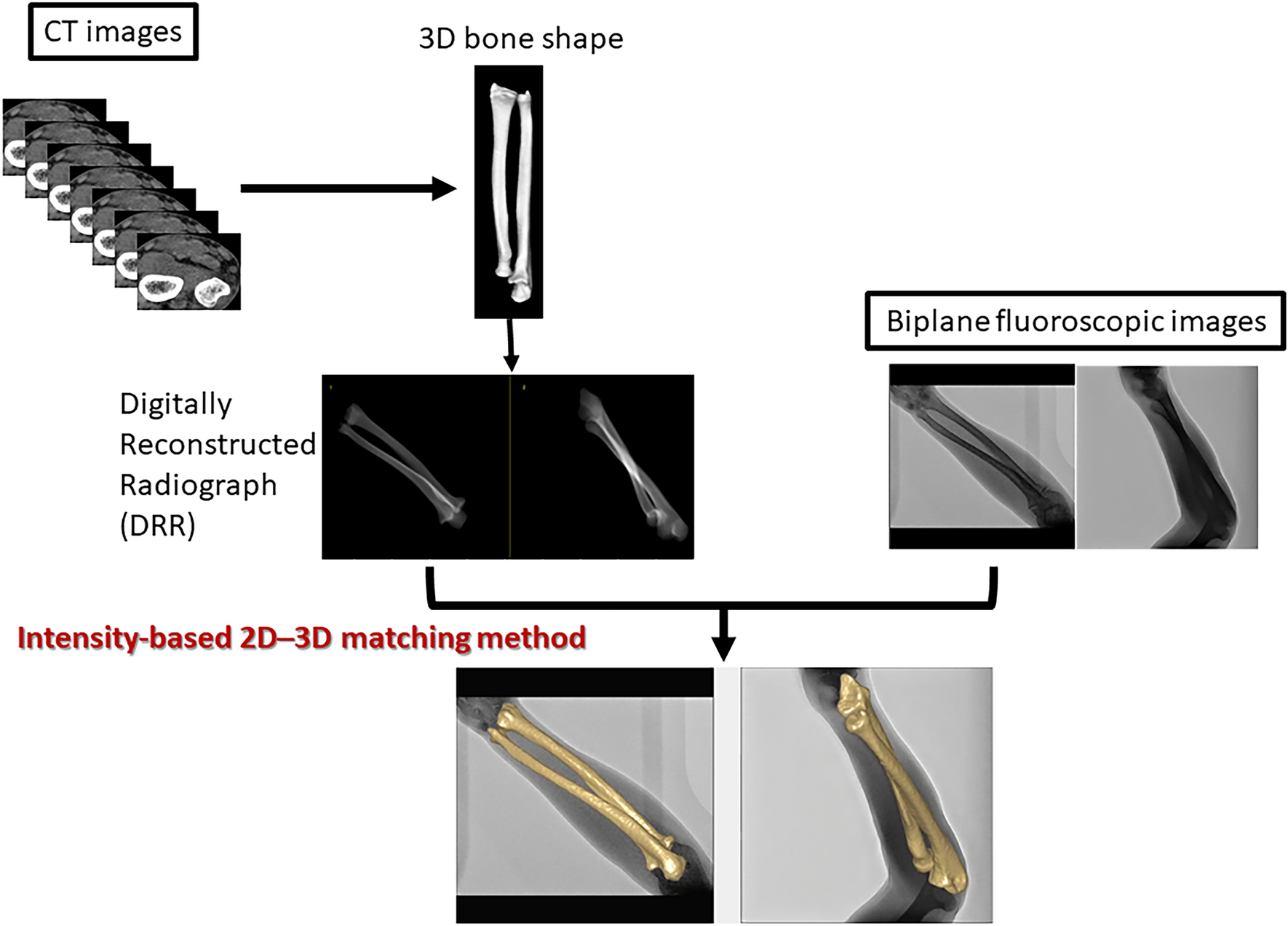

Schematic diagram of intensity-based 2D–3D matching method, in which DRR images are generated from a CT image, and the 3D bone shape obtained from CT is superimposed on the biplane fluoroscopic images based on the density gradient information in the DRR images and that in the biplane fluoroscopic images.
