From: Investigating the spatiotemporal characteristics and medical response during the initial COVID-19 epidemic in six Chinese cities

Figure 5

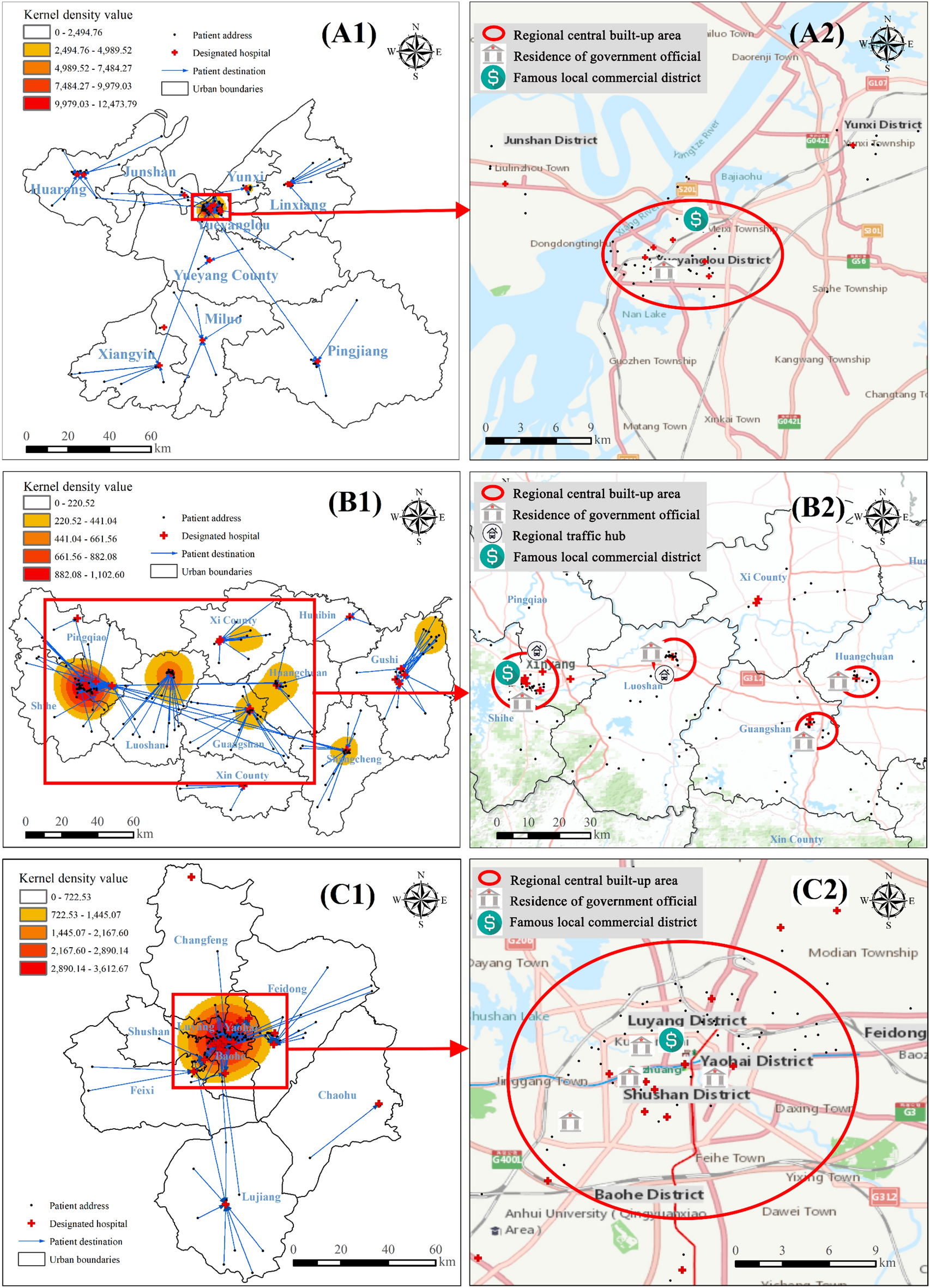

Comprehensive map of urban epidemic and human environment in cities near Wuhan, China. (A1,A2) Yueyang; (B1,B2) Xinyang; (C1,C2) Hefei. Conduct KDE analysis based on confirmed cases’ addresses and overlay this information with a map layer depicting their treatment hospitals to generate figures (A1,B1,C1). Then, select high kernel density value areas from (A1,B1,C1) and overlay them with latitude and longitude data containing the residence of government officials, prominent local commercial districts, and important transportation hubs for symbolic representation. Furthermore, incorporate online base maps from ArcGIS 10.6 to annotate central urban areas to create figures (A2,B2,C2). This graph was produced using ArcGIS 10.6. https://www.esri.com; the base map is from China Standard Map Service. http://bzdt.ch.mnr.gov.cn/.
