Figure 8 | Scientific Reports

Figure 8

From: Pan-cancer integrated analysis of ANKRD1 expression, prognostic value, and potential implications in cancer

Figure 8

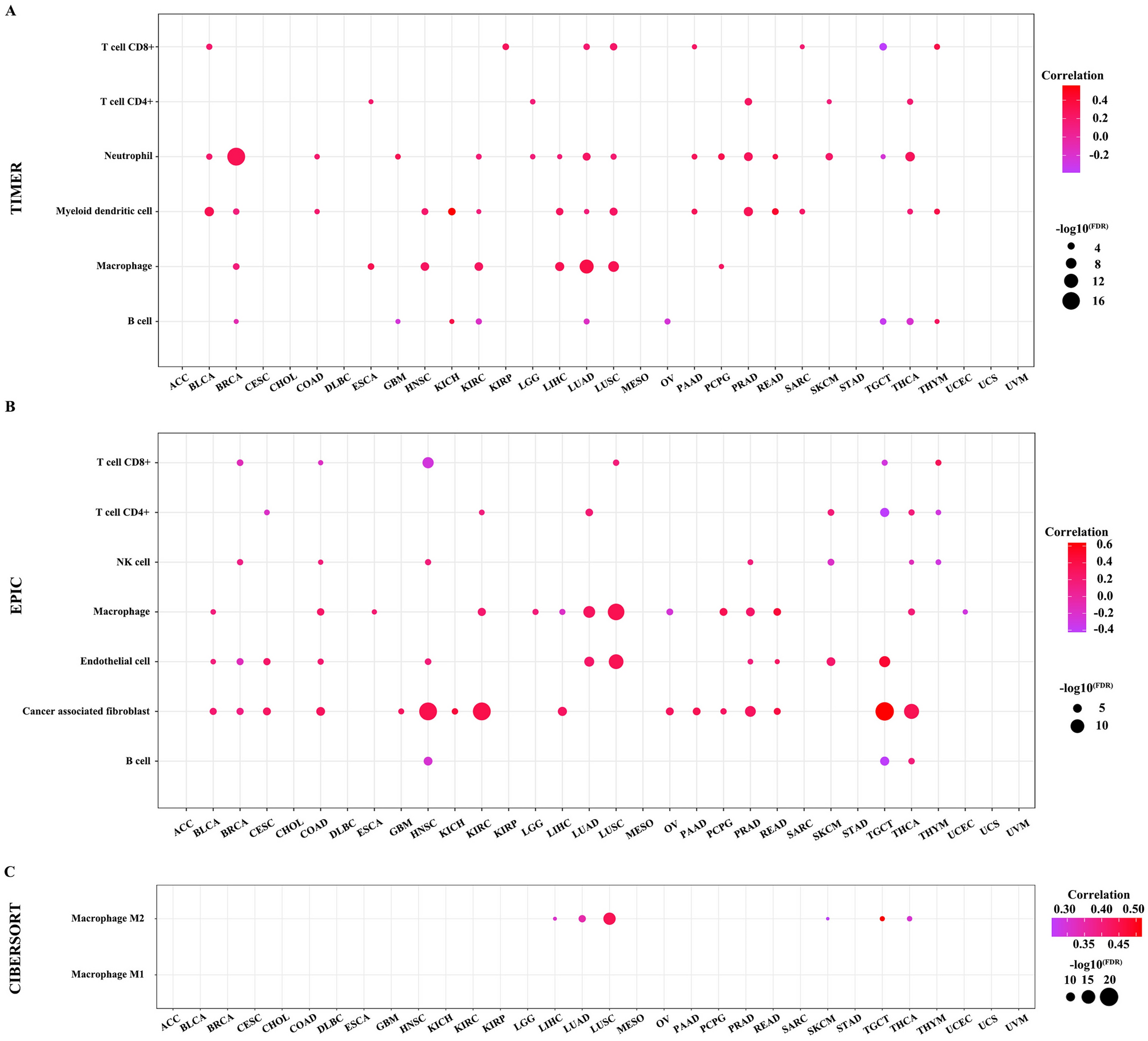

Correlation between the infiltration level of immune cell and ANKRD1 mRNA expression. (A) Bubble chart showed the correlation between ANKRD1 and immune infiltration using TIMER algorithm. (B) Bubble chart displayed the correlation between ANKRD1 and immune infiltration under EPIC algorithm. The darker the color, the higher the correlation. FDR, false discovery rate.
