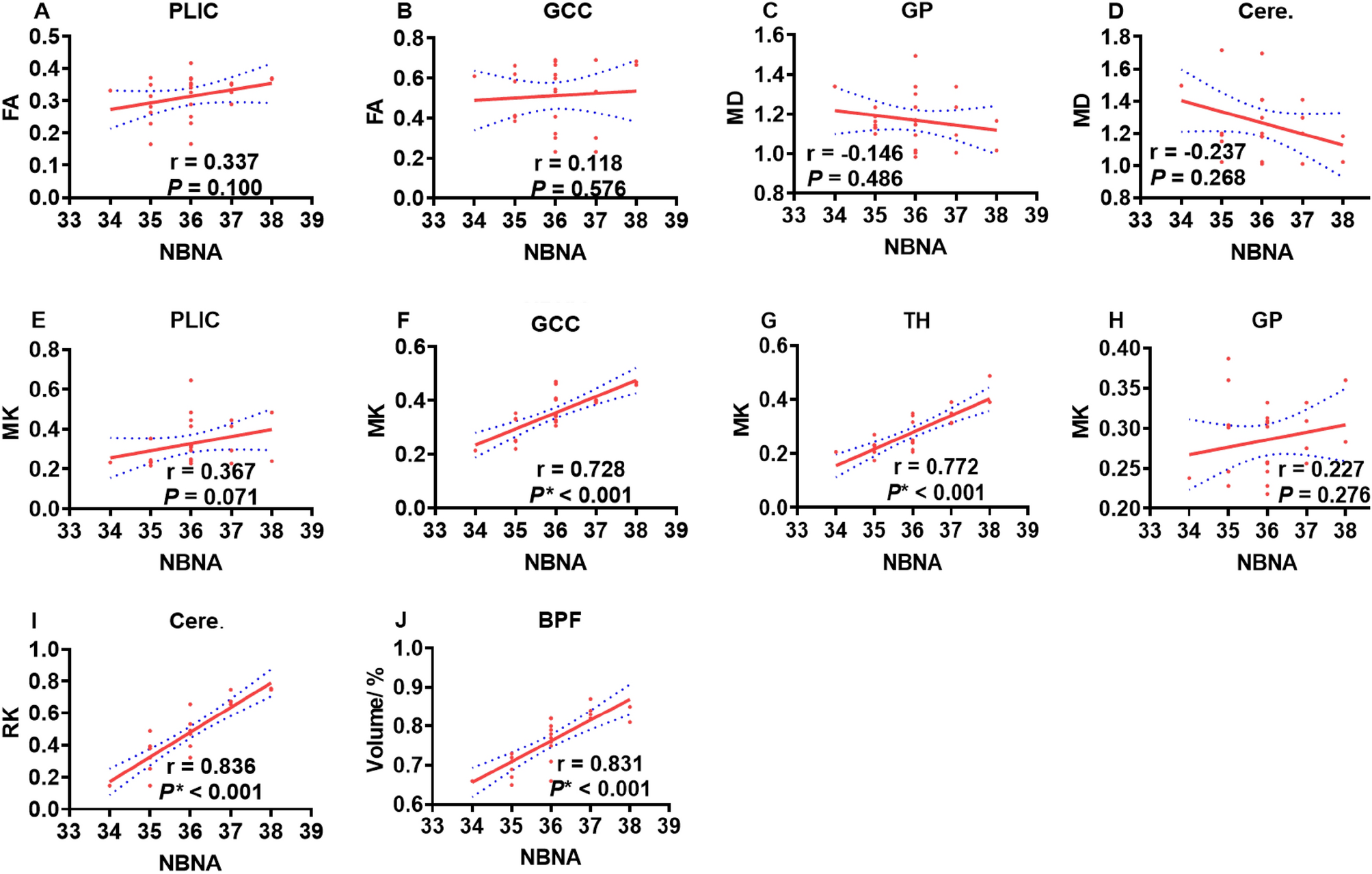

Diffusion parameters related to NBNA scores. The graph (A, B) demonstrates the relationship between FA in PLIC/GCC and NBNA. The graph (C, D) demonstrates the relationship between MD in GP/Cere. and NBNA. The graph (E–H) demonstrates the relationship between MK in PLIC/GCC/TH/GP and NBNA. The graph(I) demonstrates the relationship between RK in Cere. and NBNA. The graph(J) demonstrates the relationship between BPF and NBNA. Fractional anisotropy, FA; mean diffusivity, MD; mean kurtosis, MK; radial kurtosis, RK. Posterior limbs of the internal capsule, PLIC; genu of the corpus callosum, GCC; thalamus, TH; globus pallidum, GP; cerebellum, Cere; brain parenchymal fraction, BPF.
