Figure 2
From: Transcriptomic screening of novel targets of sericin in human hepatocellular carcinoma cells

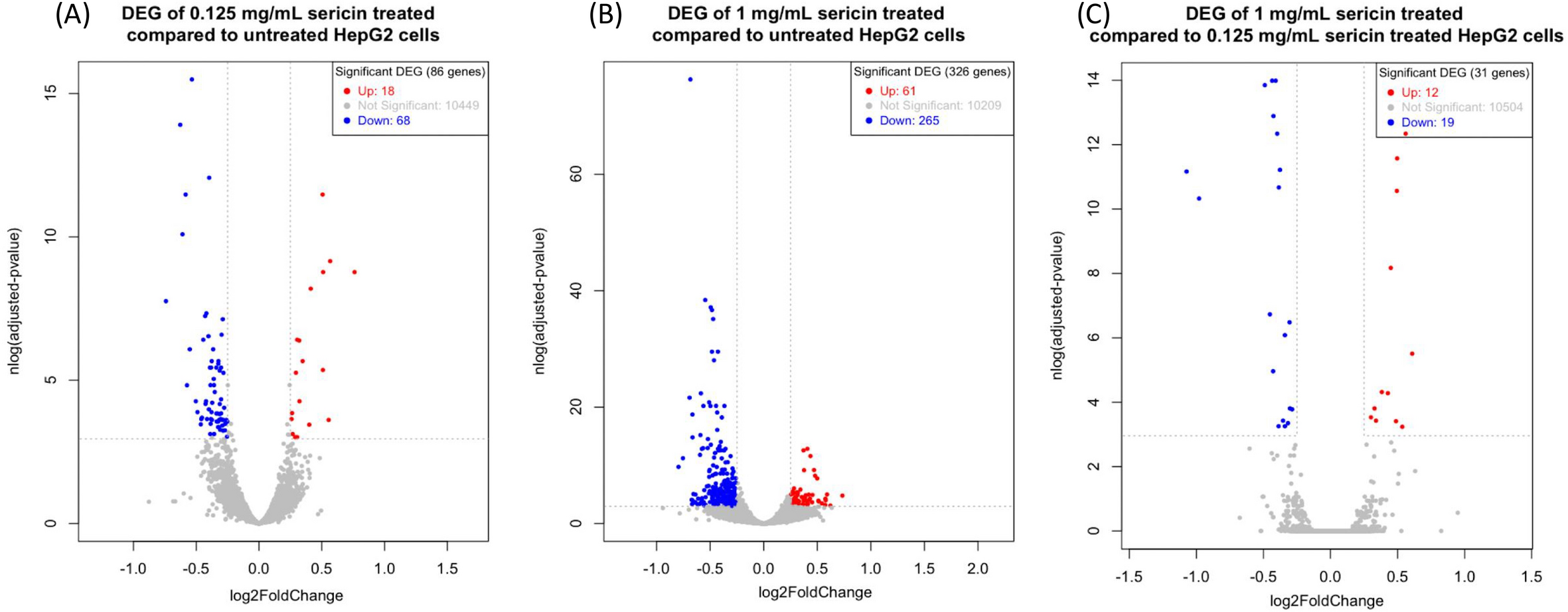

Genes that are differentially expressed after sericin administration (blue and red represent downregulated and upregulated genes, respectively). Volcano plots illustrating the magnitude and significance of DEGs between the (A) 0.125 mg/mL sericin-treated group vs. untreated group, (B) 1 mg/mL sericin-treated group vs. untreated group, and (C) 0.125 mg/mL sericin-treated group vs. 1 mg/mL sericin-treated group.
