Figure 9
From: Dielectric anisotropy changes in MBBA liquid crystal doped with barium titanate by a new method

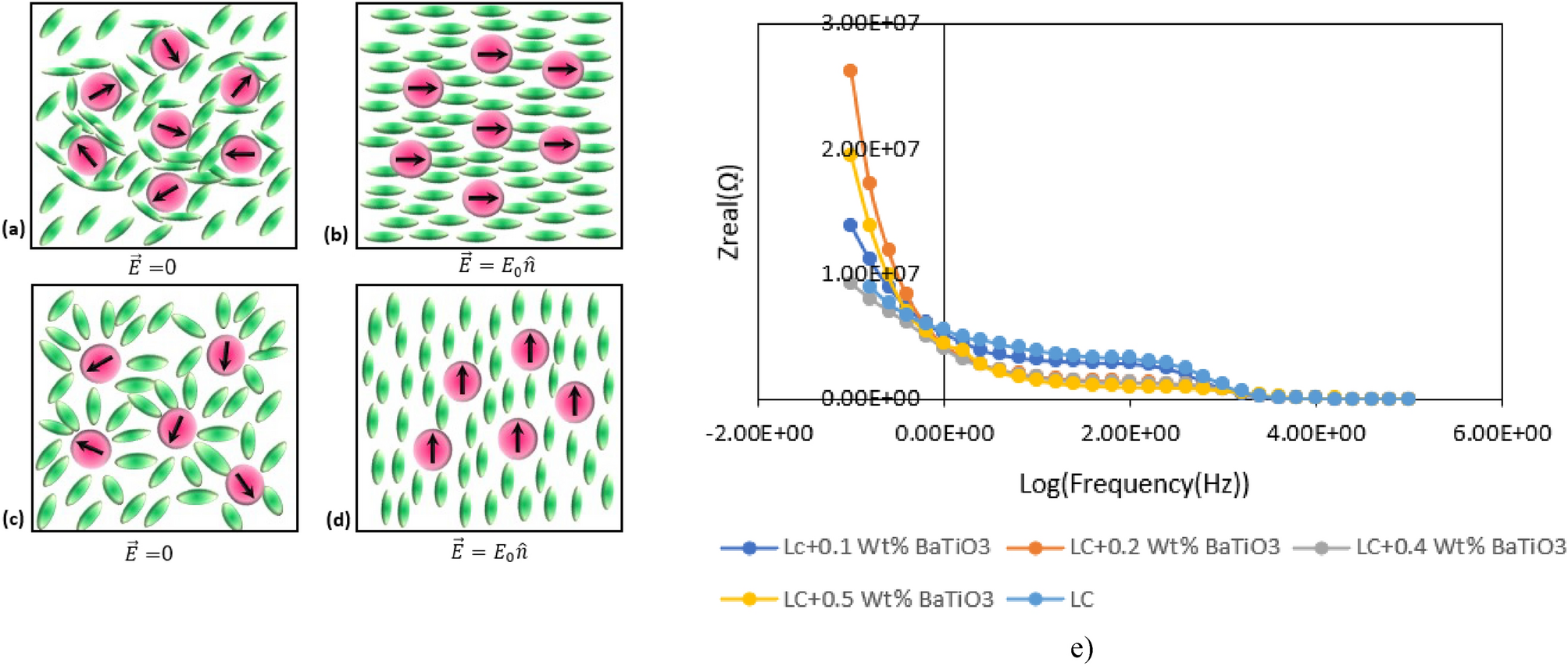

Schematic diagram of the arrangement of LC molecules in a homeotropic cell without applying an external electric field (a), with an applied external field (b) and in a planar cell without applying an external electric field (c), with an external field (d) and (e) impedance spectra of planar cells with different weight percentage of BaTiO3 nanoparticles.
