Figure 5
From: Multi-defect risk assessment in high-speed rail subgrade infrastructure in China

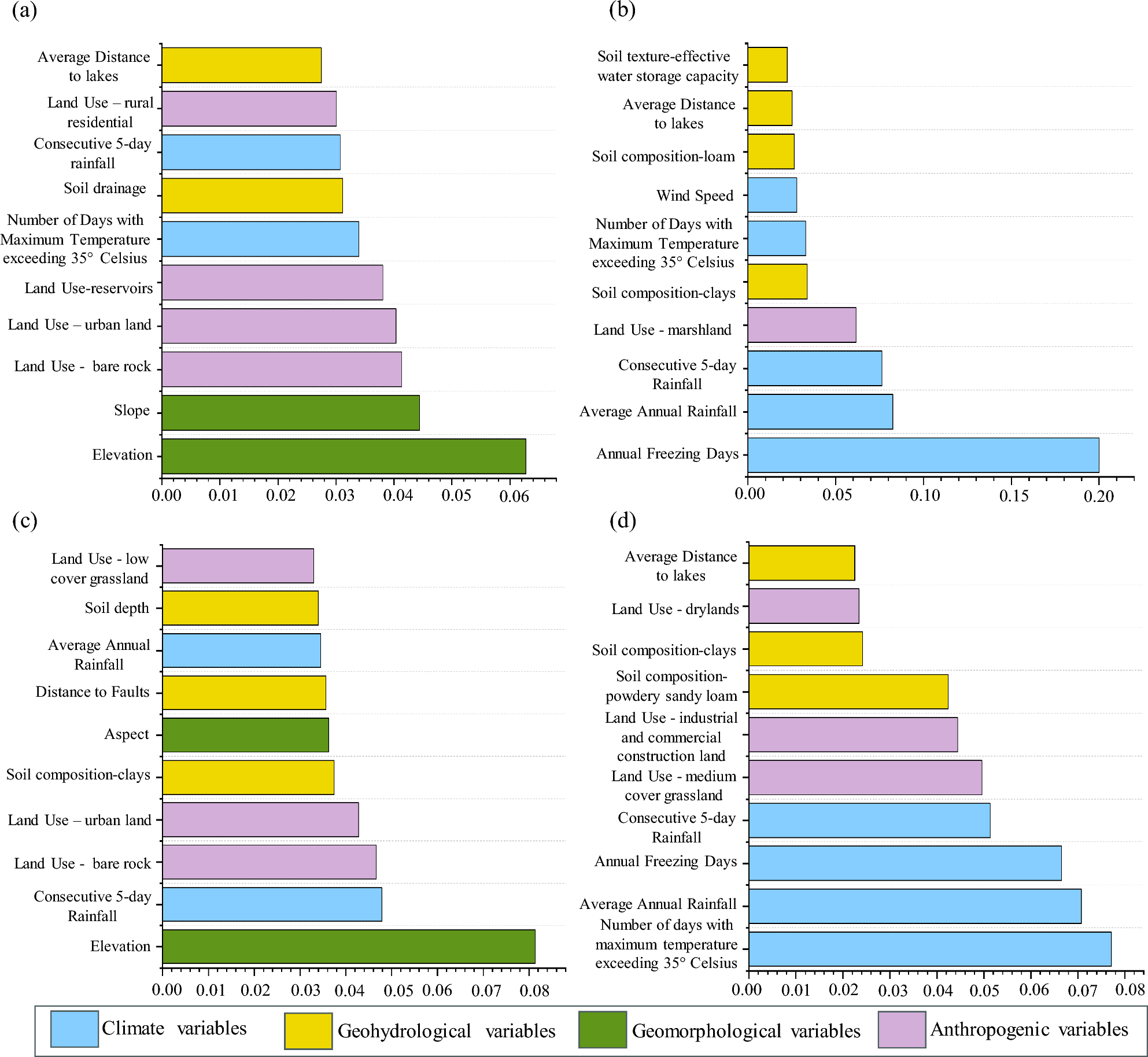

Importance map of defect factors of HSR subgrade foundations in China (a-d, subgrade settlement, Frost damage, uplift deformation, and mud pumping).
