Figure 2
From: Strain-dependent grain boundary properties of n-type germanium layers

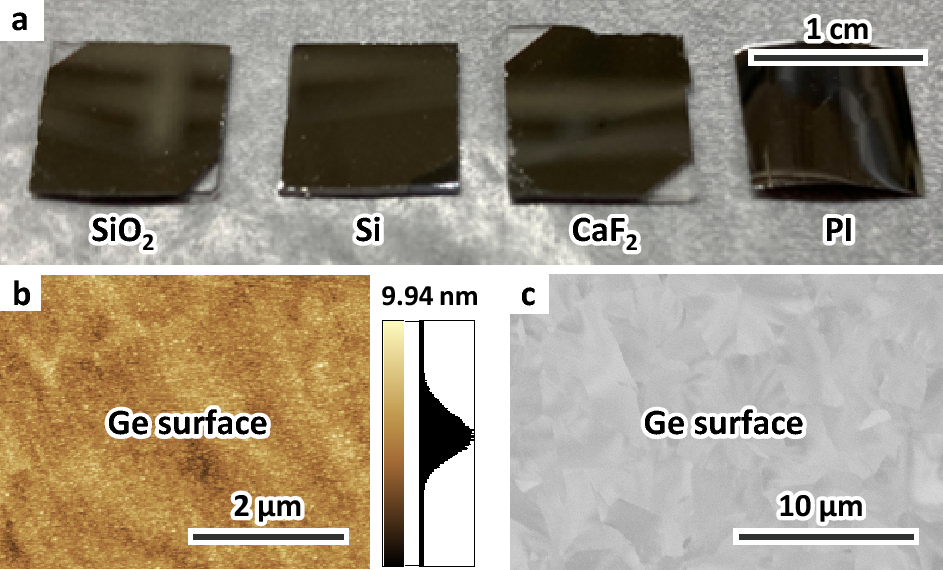

Sample appearance after annealing. (a) Photograph of the samples with an SiO2, Si, CaF2 and PI substrate. (b) AFM and (c) SEM images of the sample with a SiO2 substrate.
