From: Mapping the habitat refugia of Isidella elongata under climate change and trawling impacts to preserve Vulnerable Marine Ecosystems in the Mediterranean

Figure 8

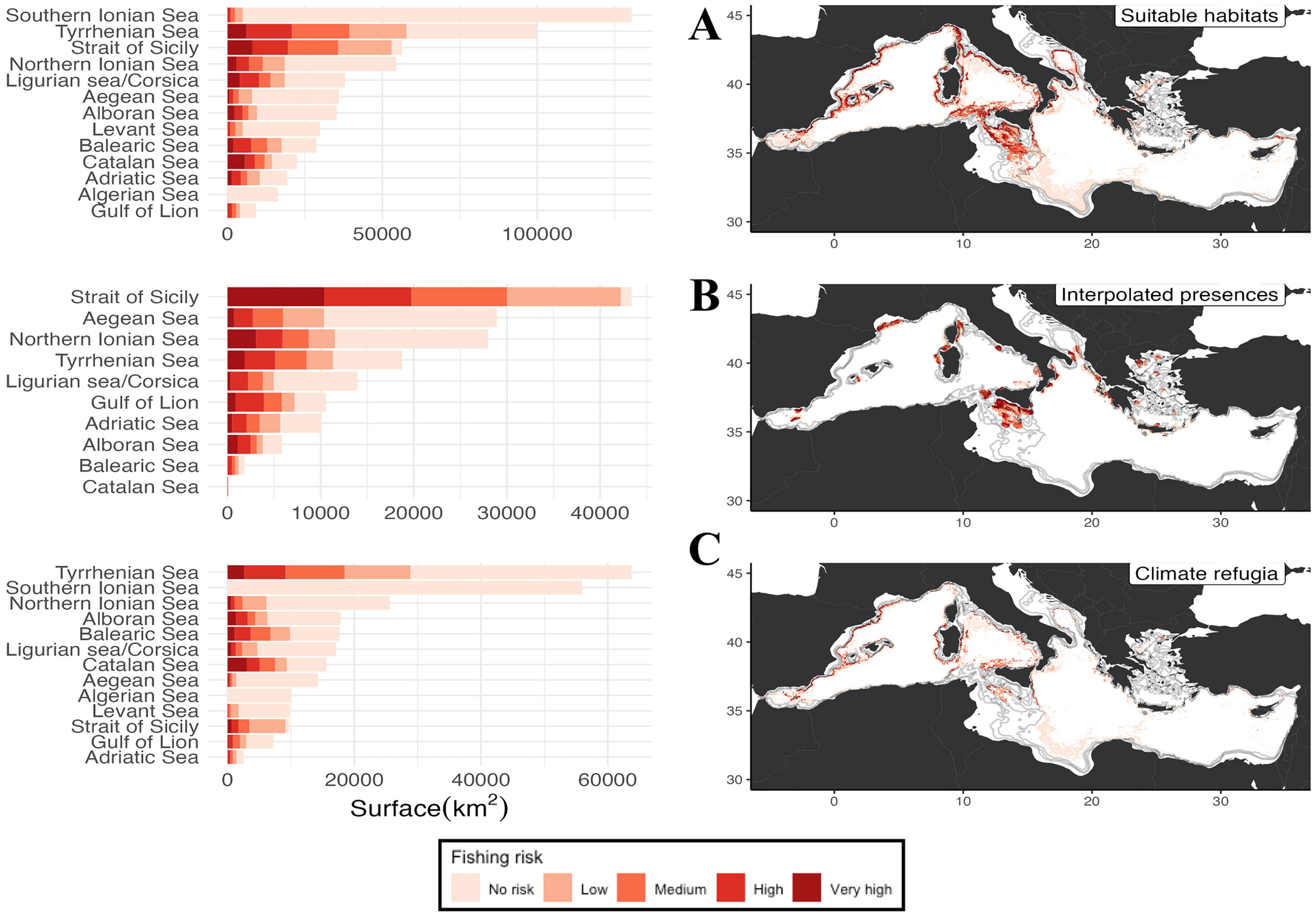

Overlap of fishery impact analysis on observed presence (A), predicted habitat suitability (B) and predicted climate refugia at 2100 (C), with (left) barplots of total surface by risk level in regional seas. Created using ggplot2 version 3.4.4 https://cran.r-project.org/web/packages/ggplot2/index.html within the R environnement (R Core Team100).
