Figure 15

From: Study on the characteristics of increased mechanical stiffness according to changes in LCP shape to reinforce clavicle fractures

Figure 15

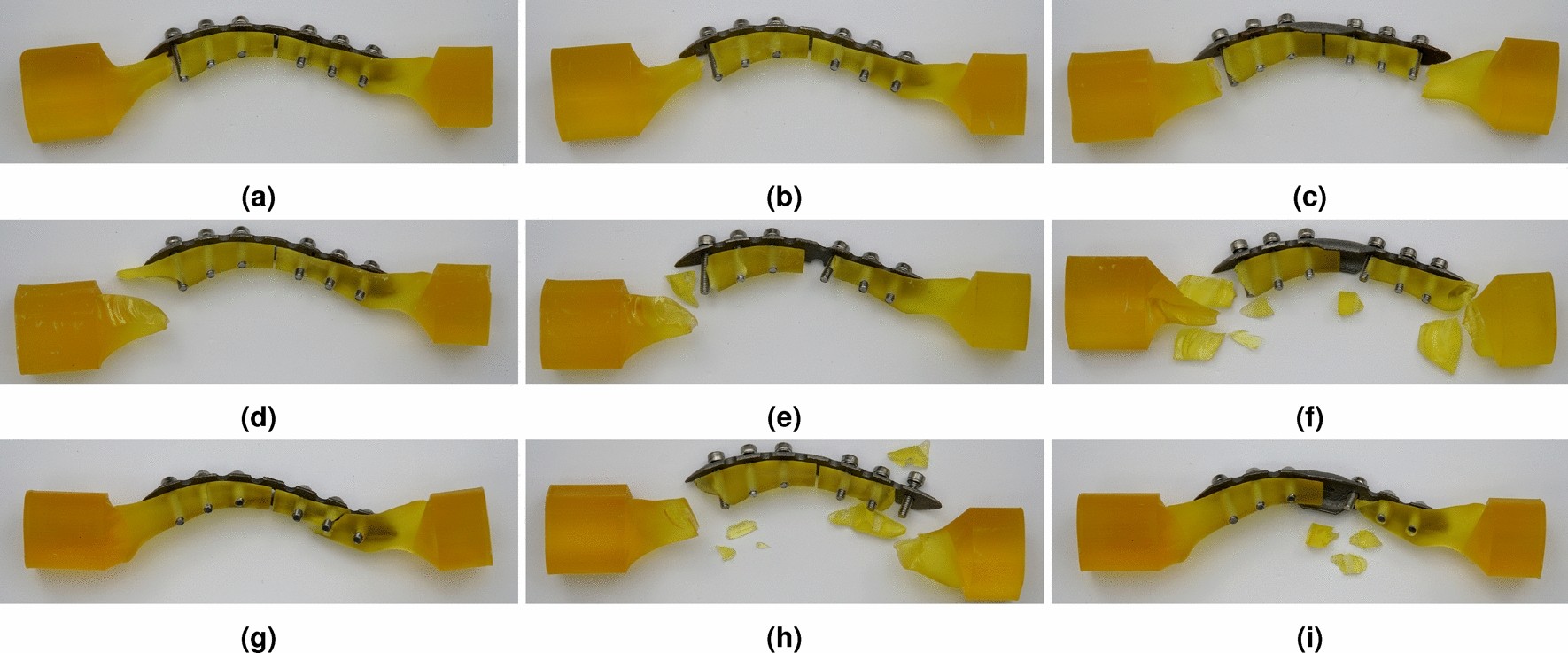

Fractured specimen shapes as a result of further verification test of customized LCP mounted on bare resin clavicle jig, (a) cantilever bending test with typical LCP shape, (b) cantilever bending test with berried-hole LCP shape, (c) cantilever bending test with double-curved partial wing LCP shape, (a) axial compression test with typical LCP shape, (b) axial compression test with berried-hole LCP shape, (c) axial comrpession test with double-curved partial wing LCP shape, (a) torsion test with typical LCP shape, (b) torsion bending test with berried-hole LCP shape, (c) torsion bending test with double-curved partial wing LCP shape.
