Figure 3

From: ECG signal quality in intermittent long-term dry electrode recordings with controlled motion artifacts

Figure 3

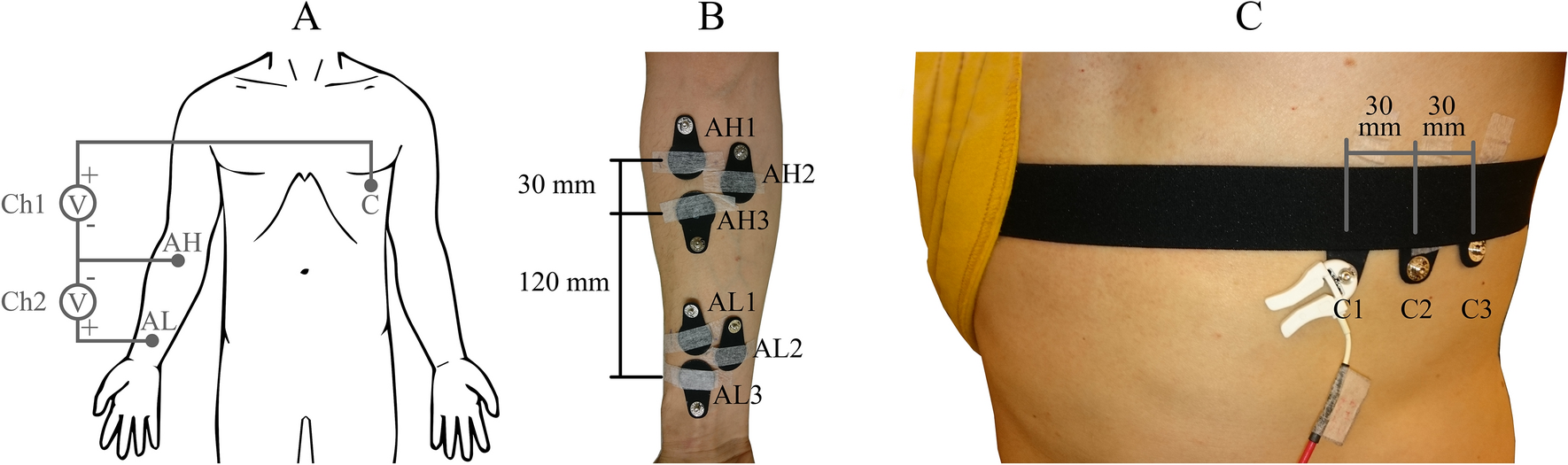

The electrode locations and recording channels. (A) Chest, Arm Low, and Arm High electrode positions, and the voltage channels Ch1 and Ch2 recorded from them. (B) and (C) electrode labels and inter-electrode distances. The electrodes in a set of three electrodes are of the same type. The electrode labels were C1, AH1, and AL1 in set 1; C2, AH2, and AL2 in set 2; and C3, AH3, and AL3 in set 3.
