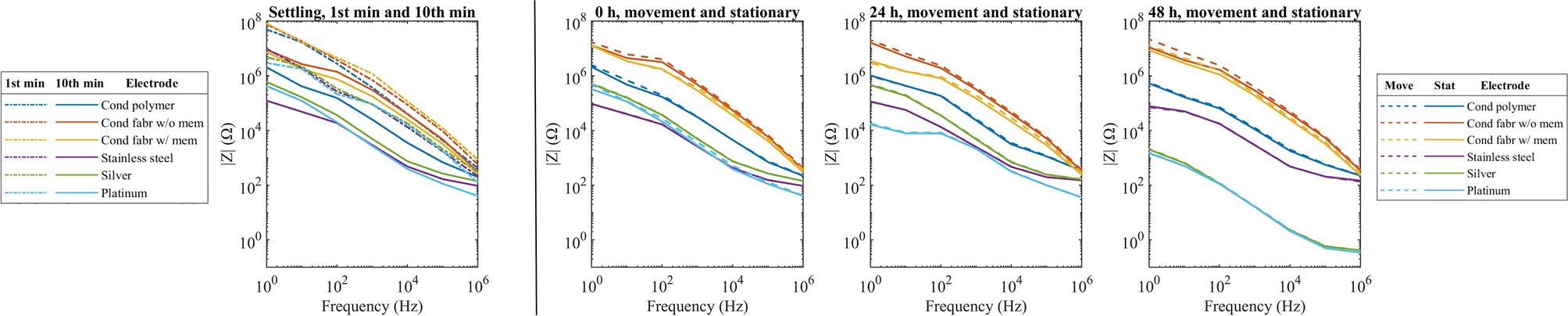

Figure 7
Impedance data over the recorded 1 Hz–1 MHz band from all of the test electrodes during the settling and long-term test. The far left panel depicts 1st- and 10th-minute results of the settling test. The following three panels show the intermittent long-term movement provocation and stationary test results. Overall, the solid materials consistently exhibit impedances that are lower than those observed in porous materials.
