Figure 11
From: Experimental design of 4-point supported belt robot for sanding large convex surfaces

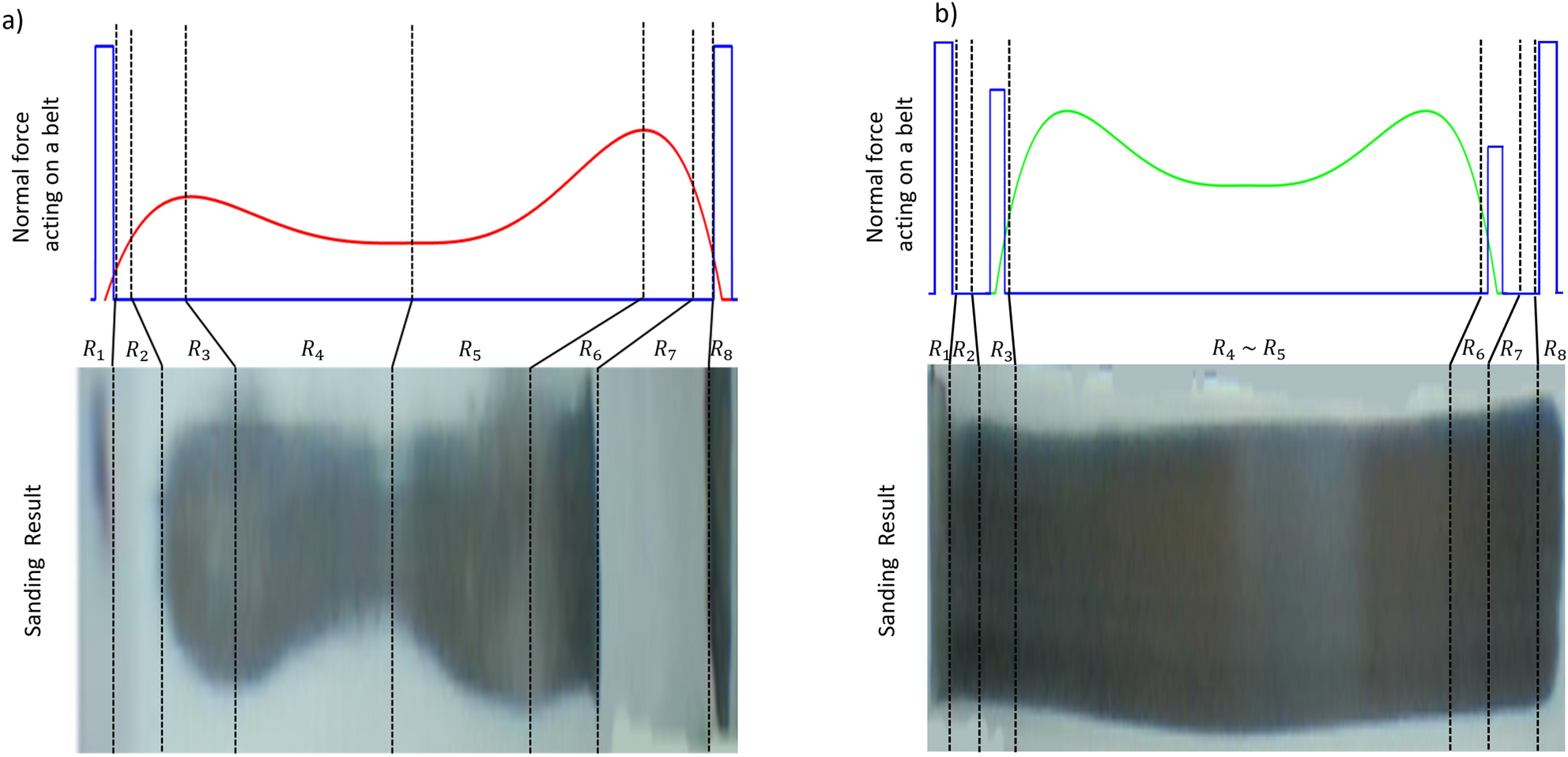

Comparison between the theoretical force distribution curve (top) and the actual sanding image (bottom) at curvature 0.91. (a) sanding result using the 2-point supported belt sanding robot, (b) sanding result using the 4-point supported belt sanding robot.
