Figure 3
From: Experimental design of 4-point supported belt robot for sanding large convex surfaces

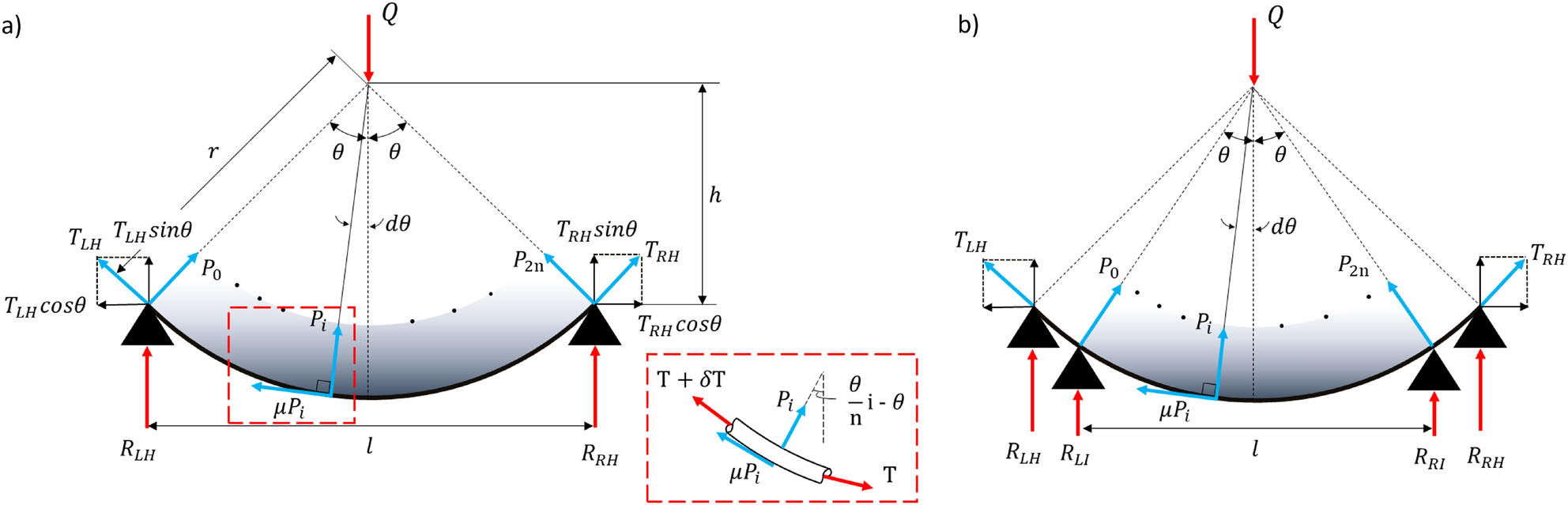

Force equilibrium of sanding belt. (a) 2-point support belt sanding condition. Rex box is the free-body diagram of the micro-scale belt. (b) 4-point support belt sanding condition.
