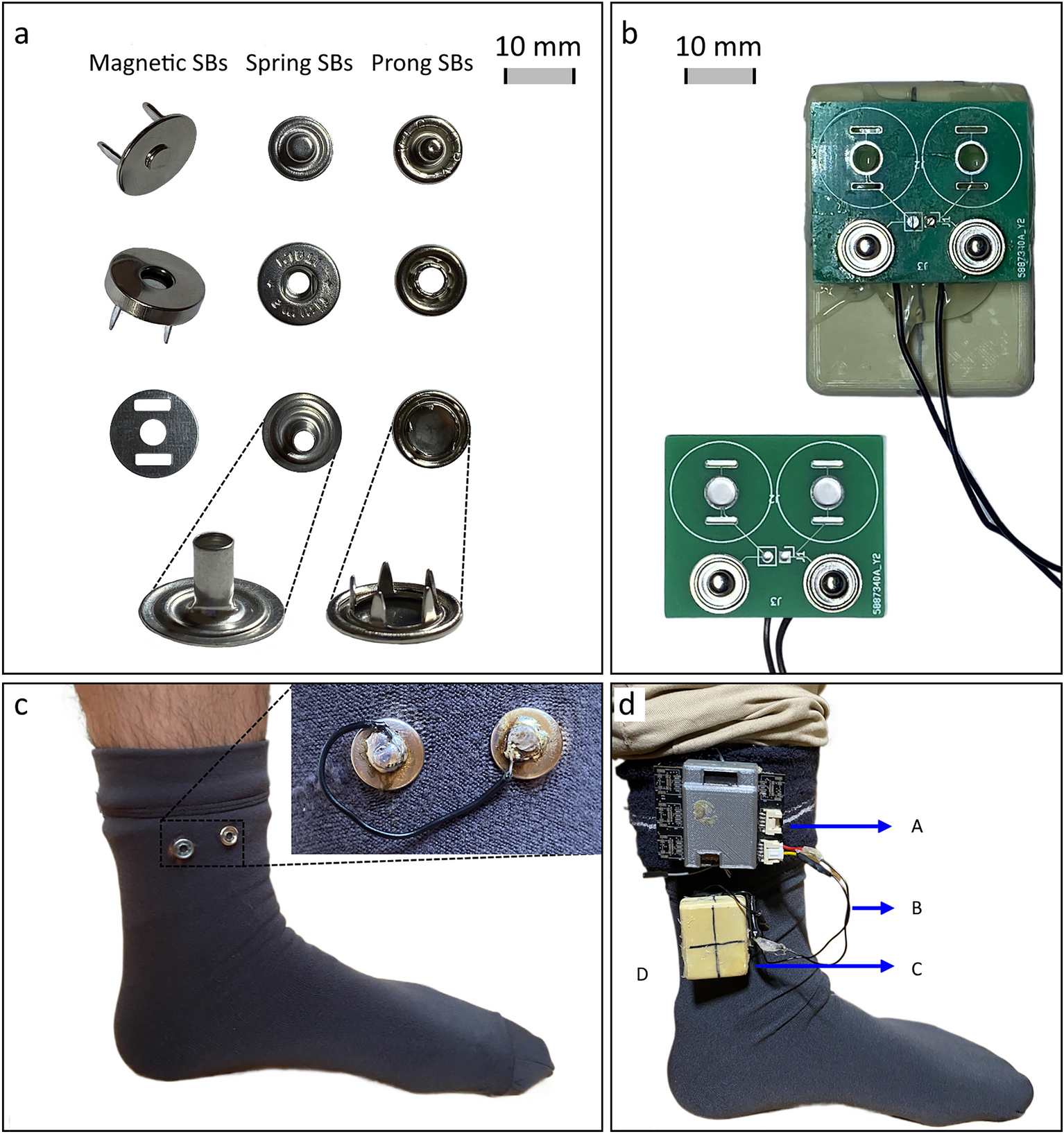

Figure 1

(a) Tested fasteners: Magnetic SBs, Spring SBs, and Prong SBs. The bottom parts of the SBs the Spring and Prong SBs are zoomed-in (bottom). (b) Interface PCBs with soldered SBs with the test mass (top) and without the test mass (bottom). (c) Sock with crimped Prong SBs which were shunted using a wire on the back (upper right; inside out view). (d) Test setup with labeled parts: (A) Acquisition Device, (B) Connecting Wires, (C) Interface PCB with test mass, and (D) Sock.
