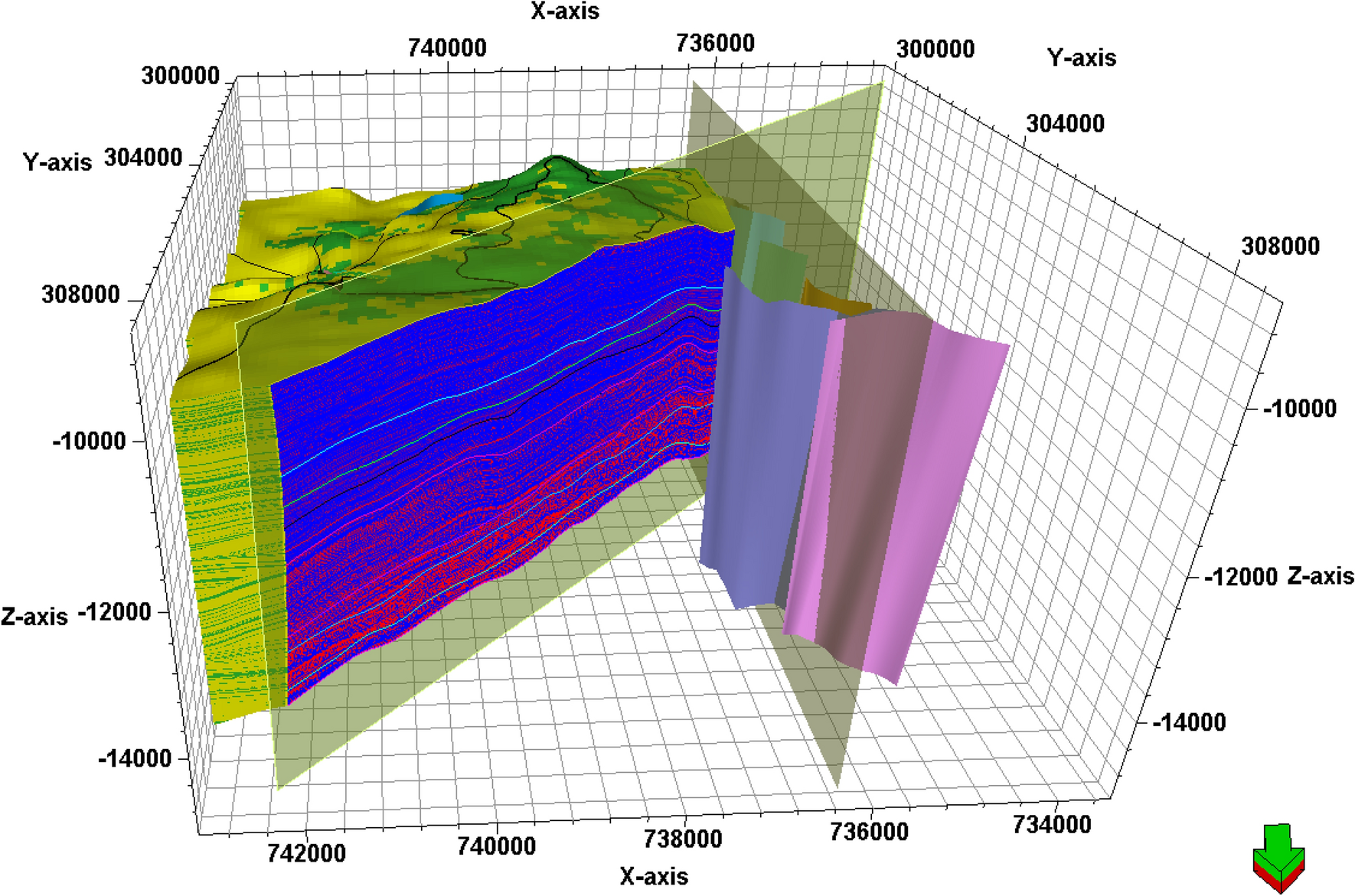

Figure 23

The 3D saturation model of the AEB Formation shows the distribution of water saturation from a high percentage (blue) to a low percentage (red), which corresponds to high hydrocarbon saturation (red) and low hydrocarbon saturation (blue).
