Figure 24

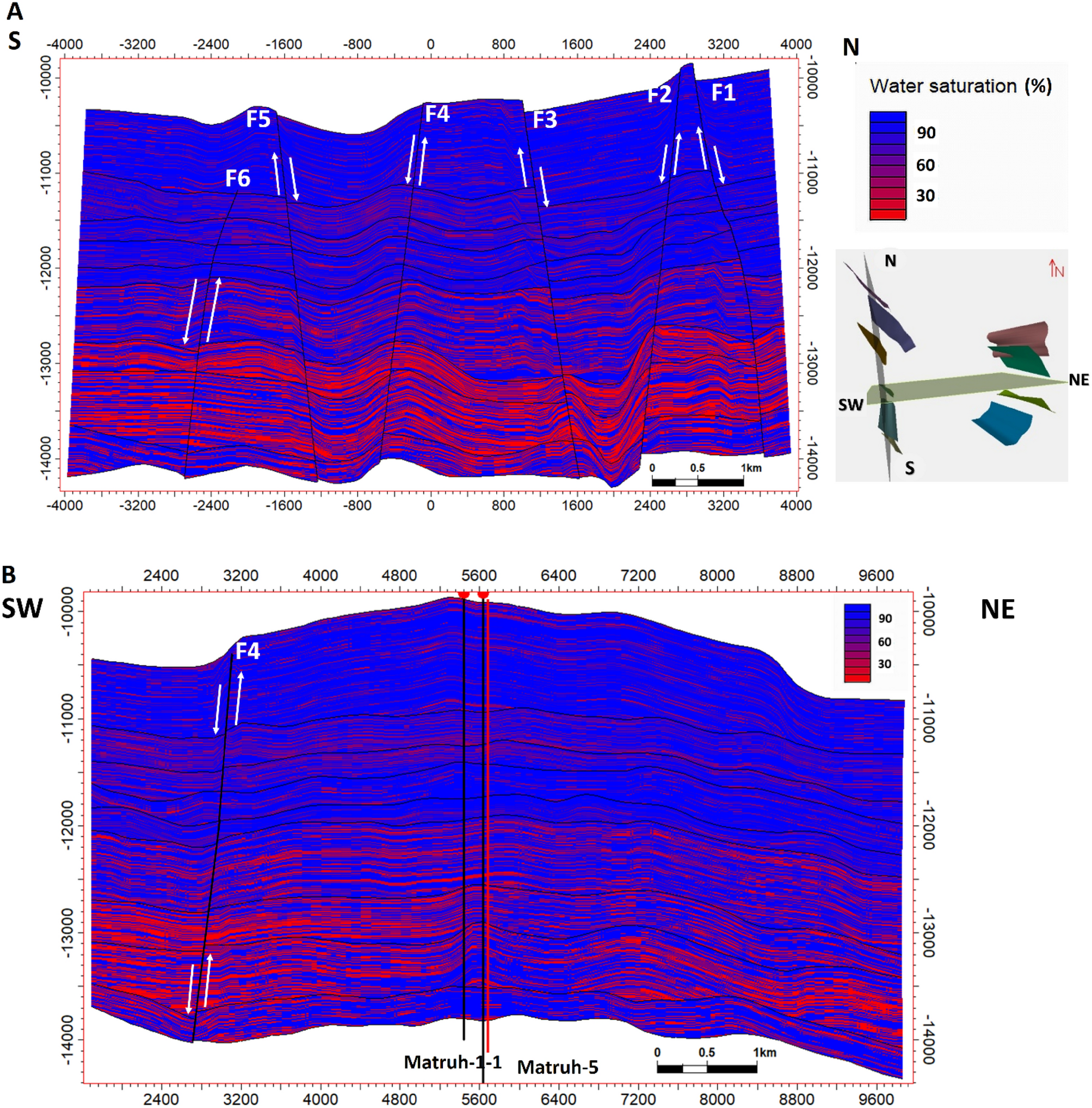

Two intersections in the directions (S–N and SW-NE) through the 3D saturation model of the AEB Formation show the distribution of the oil saturation from low (blue) to high (red).
Figure 24 | Scientific Reports
Two intersections in the directions (S–N and SW-NE) through the 3D saturation model of the AEB Formation show the distribution of the oil saturation from low (blue) to high (red).
